Component Locations

MAP SENSOR

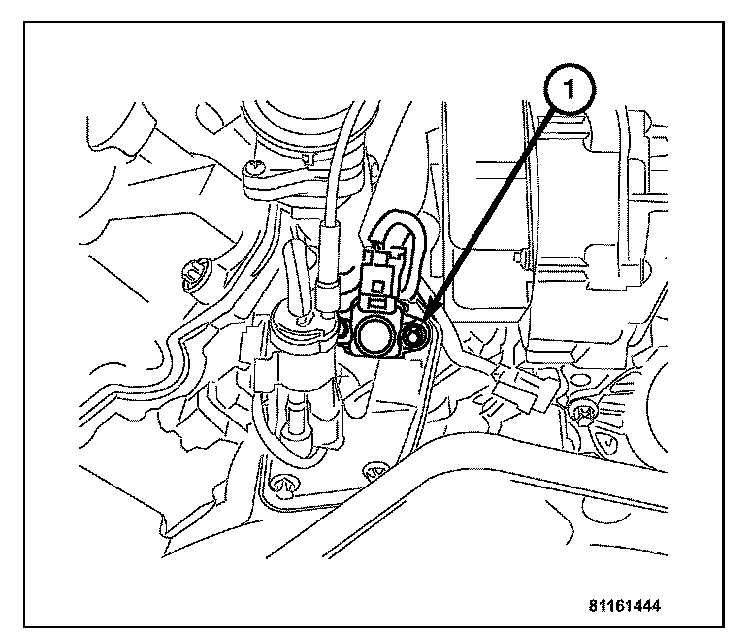

The Manifold Absolute Pressure (MAP) Sensor, is mounted to the front of the engine on the right side next to the air pump.

MAP SENSOR - SRT






The Manifold Absolute Pressure (MAP) Sensor is mounted in the Charge Air Cooler below the Throttle Body.
