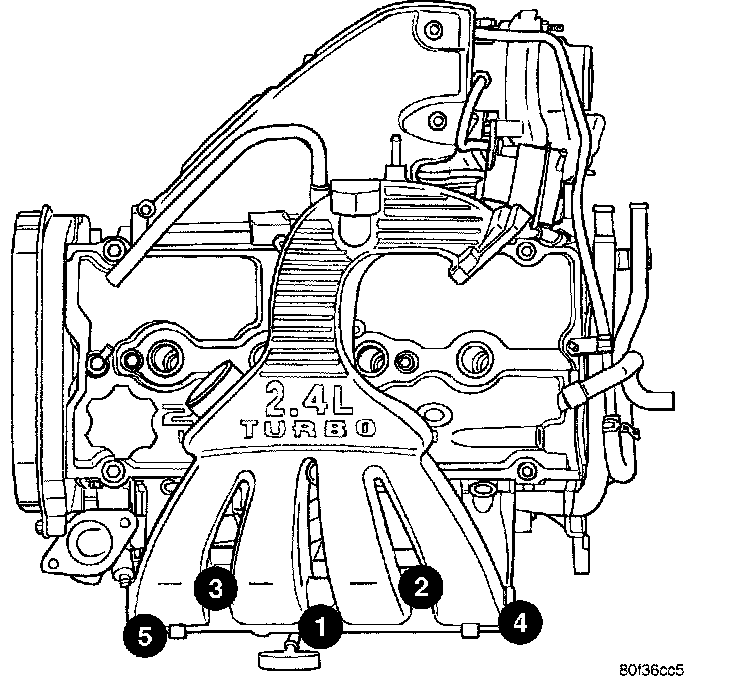

Intake Manifold

Intake Manifold Upper-Bolts (Turbo)
aluminum intake manifold 28 Nm (250 inch lbs.)
plastic intake manifold 12 Nm (105 inch lbs.)





Intake Manifold Lower-Bolts (Turbo)
aluminum intake manifold 28 Nm (250 inch lbs.)
plastic intake manifold 12 Nm (105 inch lbs.)
