System Specifications

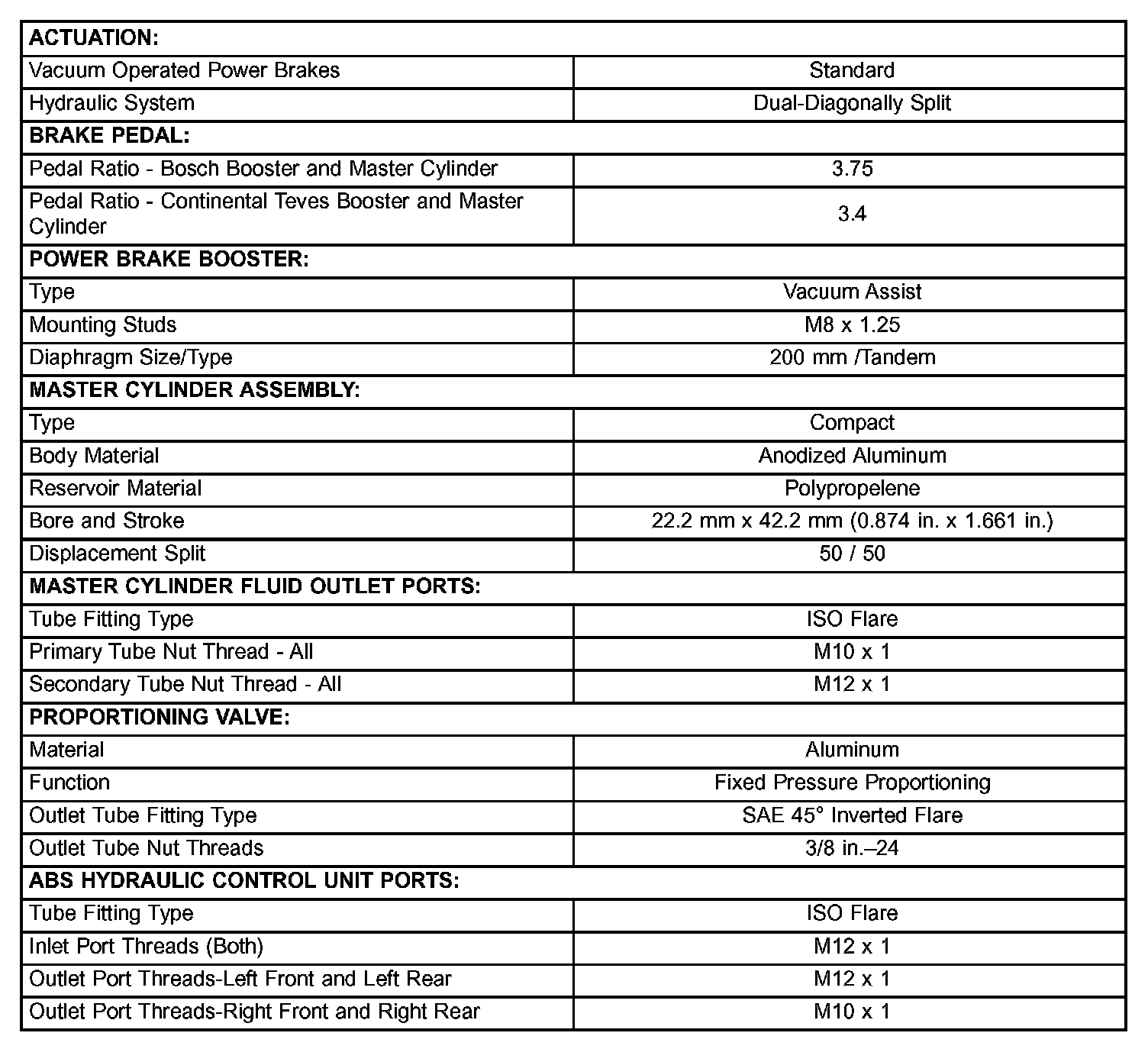

BRAKE ACTUATION:

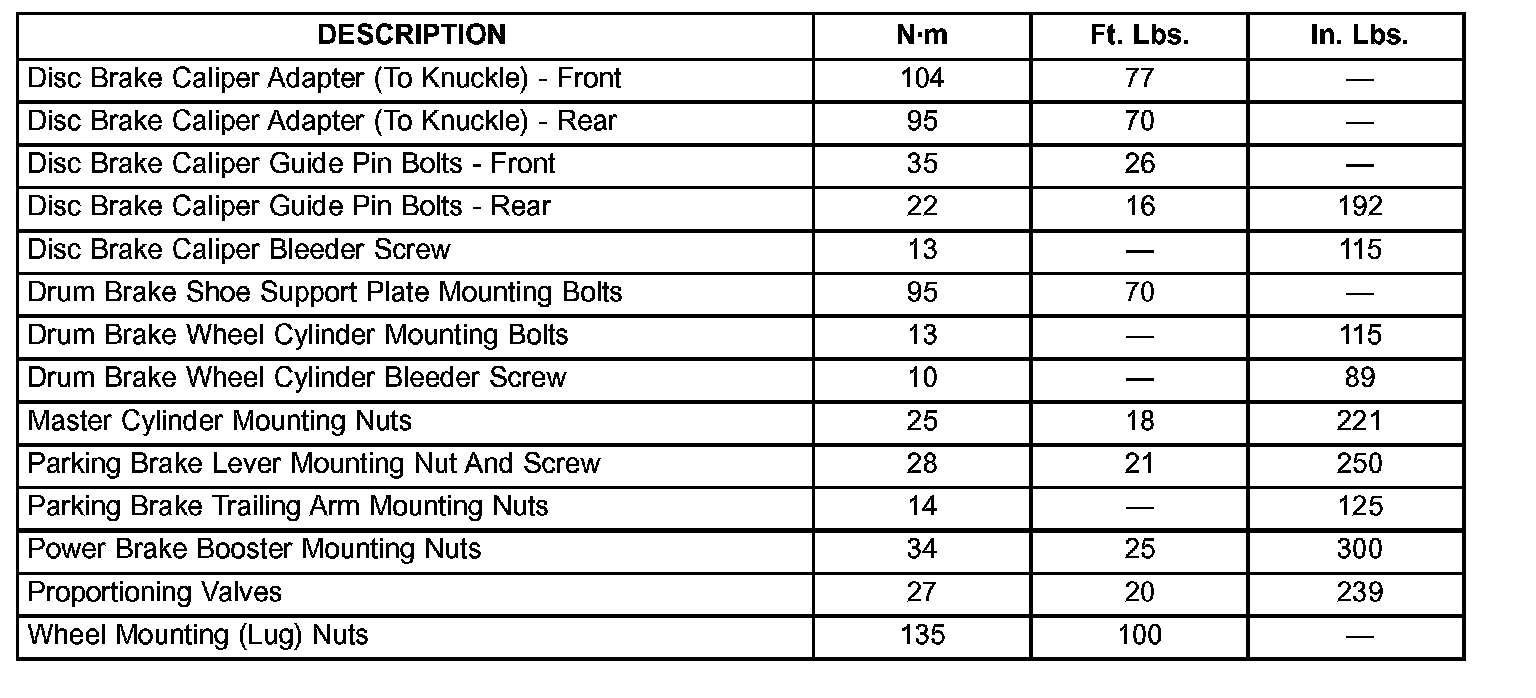

BRAKE FASTENER TORQUE:




BRAKE FASTENER TORQUE:




STANDARD BRAKE ROTOR (BRB/BRK/BRT) LIMITS:




PERFORMANCE BRAKE ROTOR (BR4) LIMITS:




BRAKE DRUM LIMITS:
