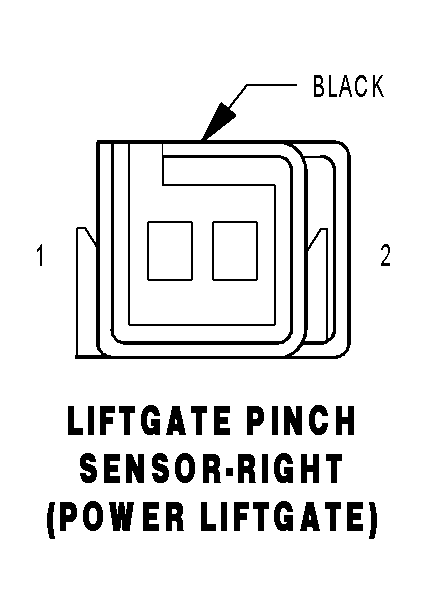

Right Liftgate Pinch Sensor (Power Liftgate) Connector End View
LIFTGATE PINCH SENSOR-RIGHT (POWER LIFTGATE) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
Q77 20OR/DB |
RIGHT PINCH SENSOR SIGNAL |
| 2 |
Q901 20OR/VT |
GROUND |
