Manual Transmission/Transaxle

T350 MANUAL TRANSAXLE

TORQUE SPECIFICATIONS

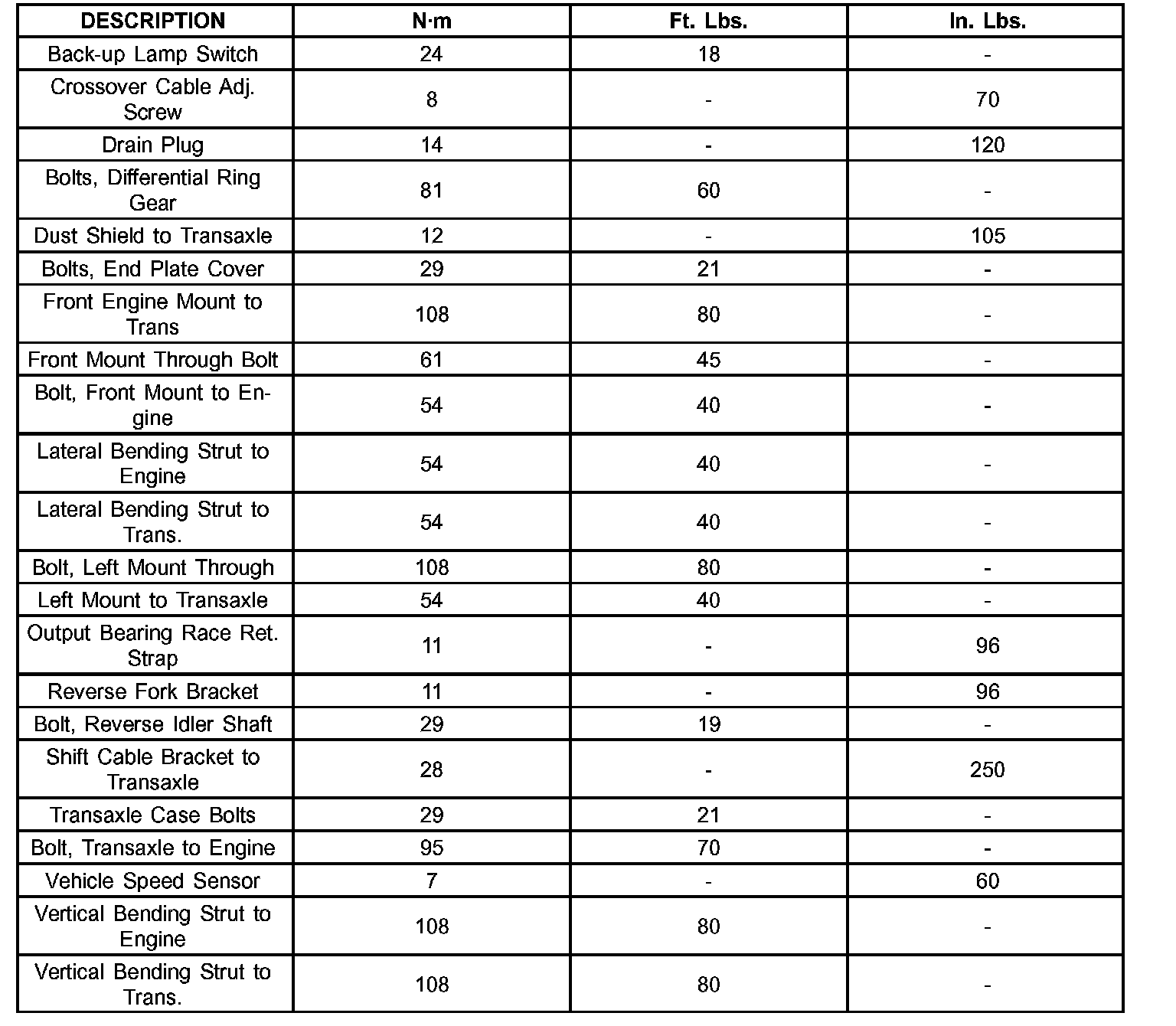

T350 MANUAL TRANSAXLE TORQUE SPECIFICATIONS (PART 1):




T350 MANUAL TRANSAXLE TORQUE SPECIFICATIONS (PART 2):





Bolts that have thread sealer or torque lock patches should not be reused. Always install new bolts in these applications.
