Heat Shields: Description

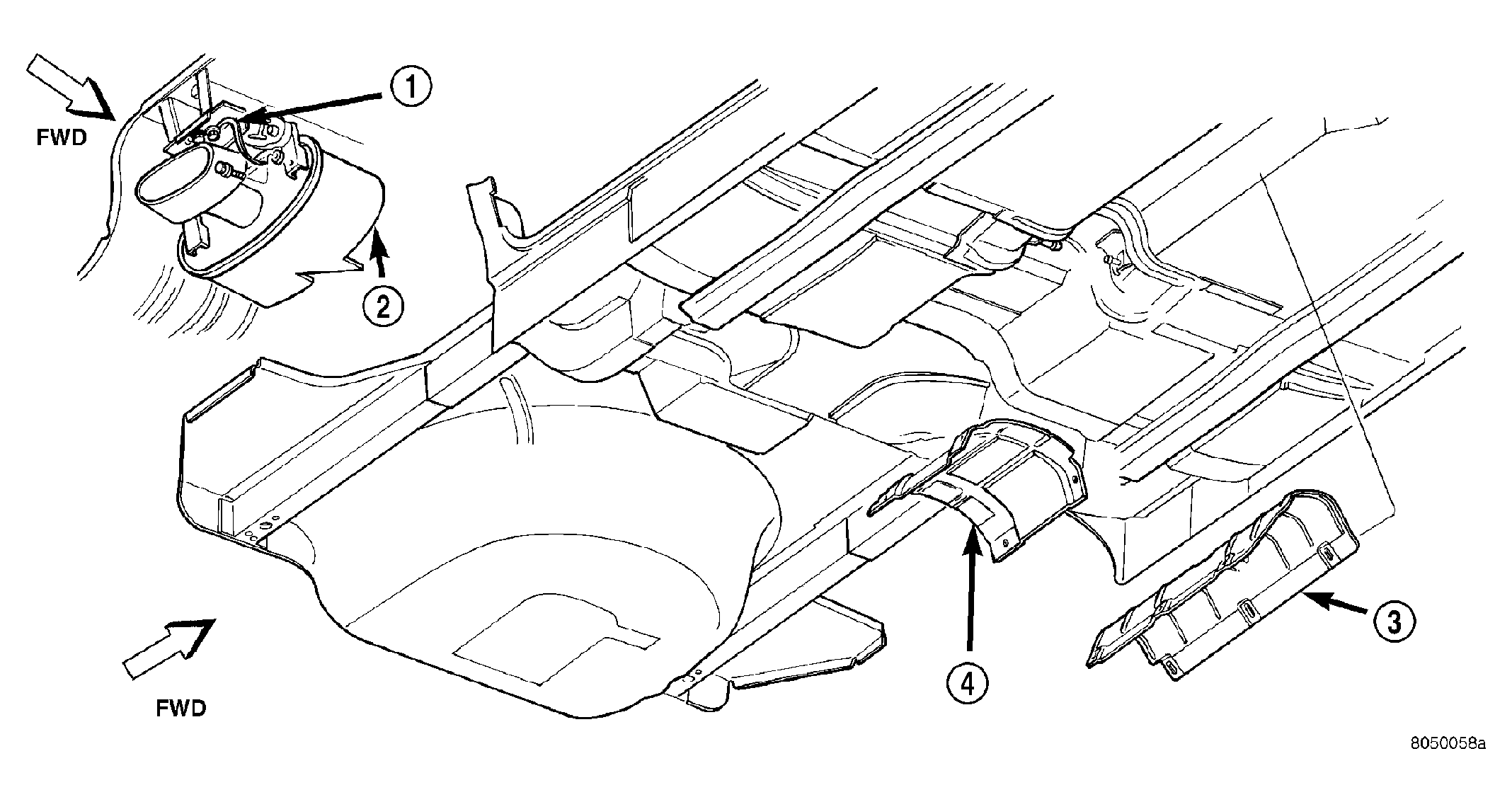

The exhaust system heat shields are attached to the under body of the vehicle. See Fig 1.
| 1 - GROUND STRAP |
| 2 - MUFFLER |
| 3 - HEAT SHIELD |
| 4 - RESONATOR HEAT SHIELD |
The exhaust system heat shields are attached to the under body of the vehicle. See Fig 1.
| 1 - GROUND STRAP |
| 2 - MUFFLER |
| 3 - HEAT SHIELD |
| 4 - RESONATOR HEAT SHIELD |
