Section 106 (Interior/Exterior): DECKLID/Liftgate: Hinge: Removal

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release decklid latch and open decklid.
  2. Support decklid on a suitable prop rod.
  3. Using a grease pencil or equivalent, lightly mark the outline of the decklid hinge to assist installation.
  4. Remove rear wheels.
  5. Remove wheel well splash shields.
  6. Remove bolts attaching hinge to trunk pan from underneath, in wheel well area.
  7. Remove bolts attaching decklid hinge to the trunk pan. See Fig 1
  8. Remove bolts attaching decklid hinge to the decklid.
  9. Remove hinge.

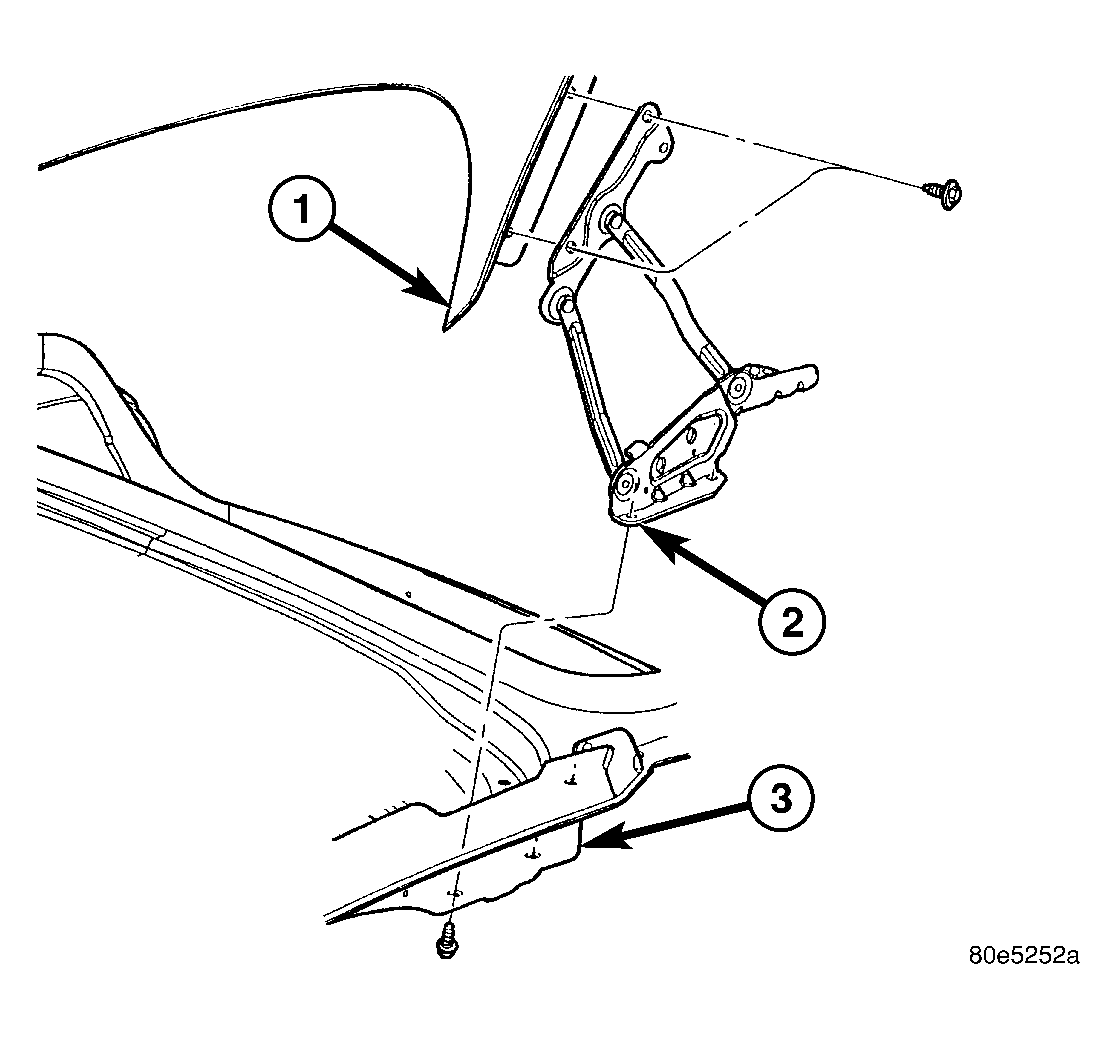

Fig 1: Decklid Hinge
GC0036526Courtesy of DAIMLERCHRYSLER CORP.
1 - DECKLID ASSEMBLY
2 - DECKLID HINGE ASSEMBLY
3 - BODY ASSEMBLY
