Map Sensor: Removal
WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

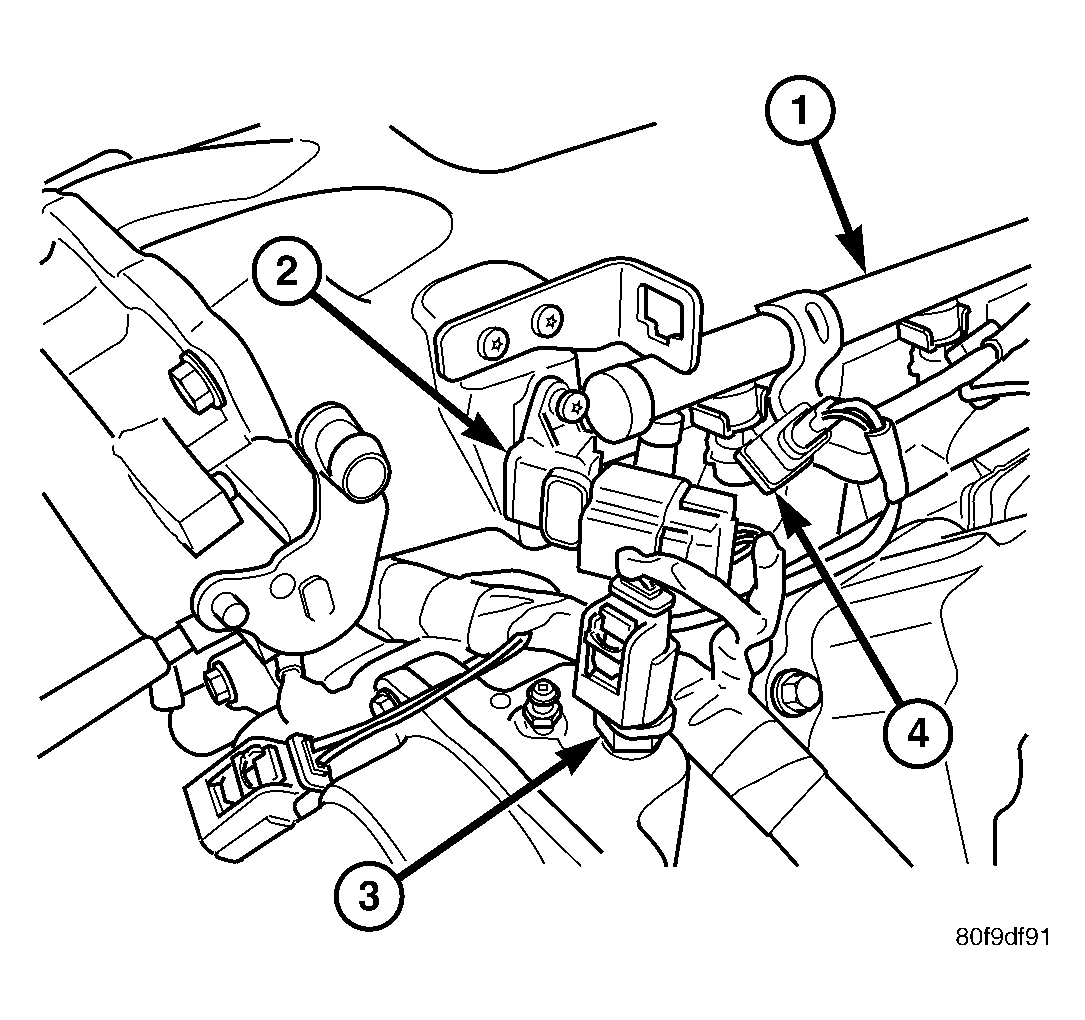

The manifold absolute pressure sensor is mounted on the drivers side of the intake manifold. See Figure.
- Disconnect the electrical connector from the MAP sensor.
- Remove MAP sensor mounting screws.
