Throttle Cable: Installation
WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

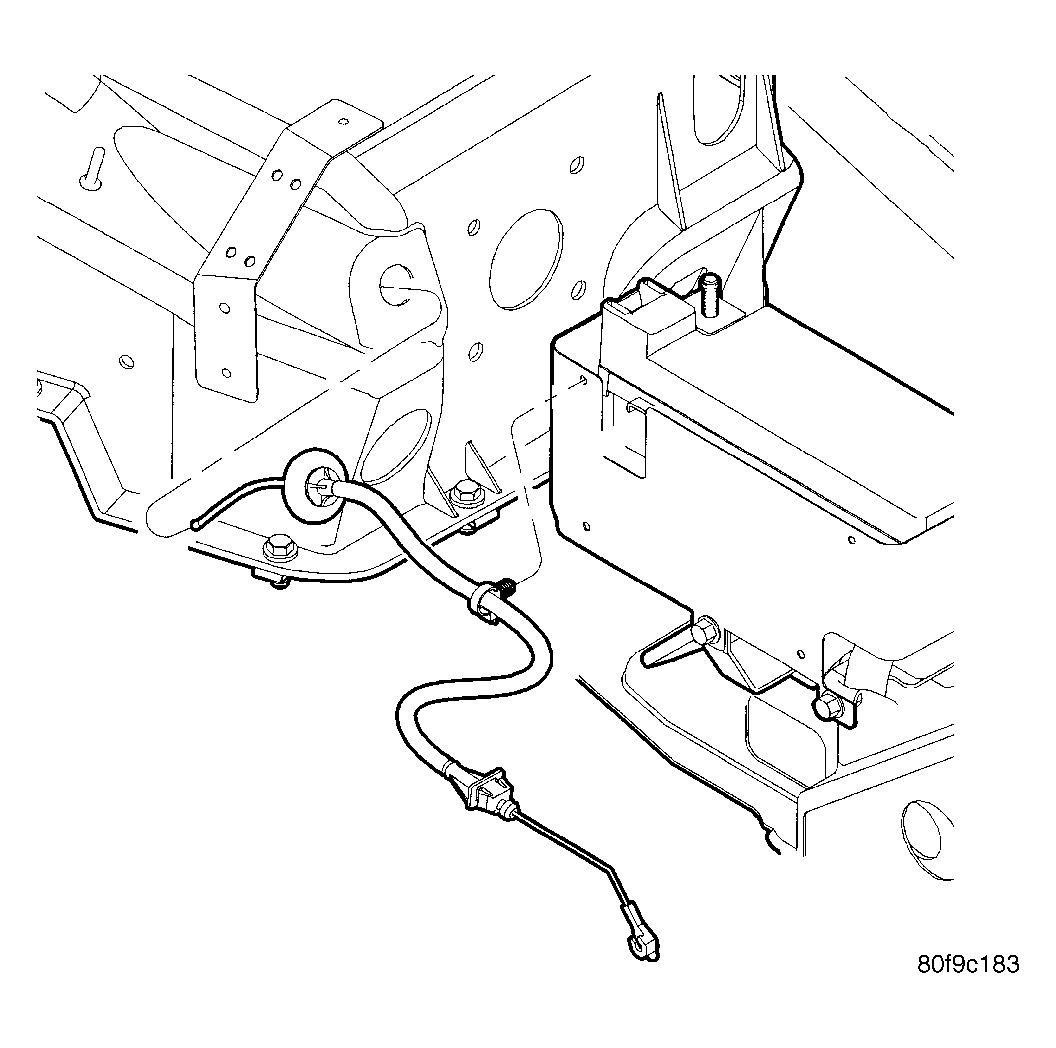

- Insert cable assembly through opening in dash panel. See Figure. Seat cable retainer in dash panel.

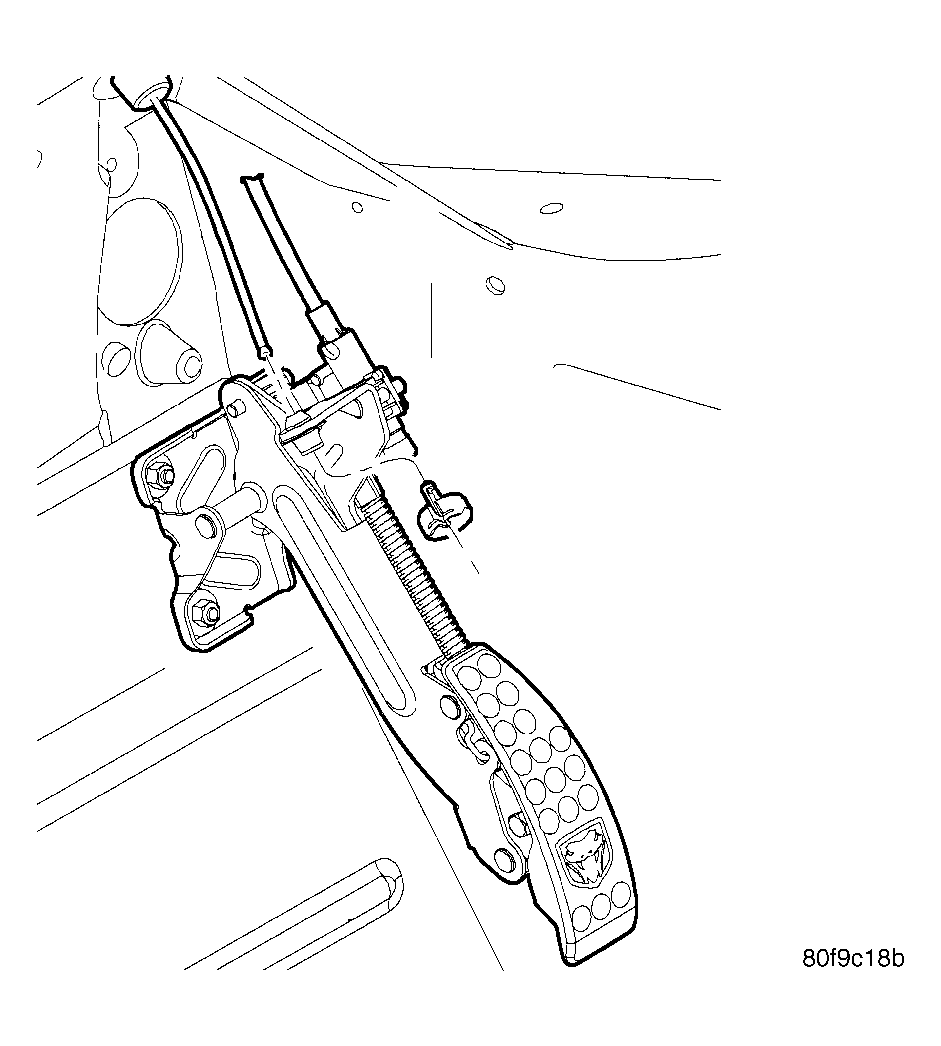

- From inside the vehicle, hold up the pedal and install the throttle cable and cable retainer in the upper end of the pedal shaft. See Figure.

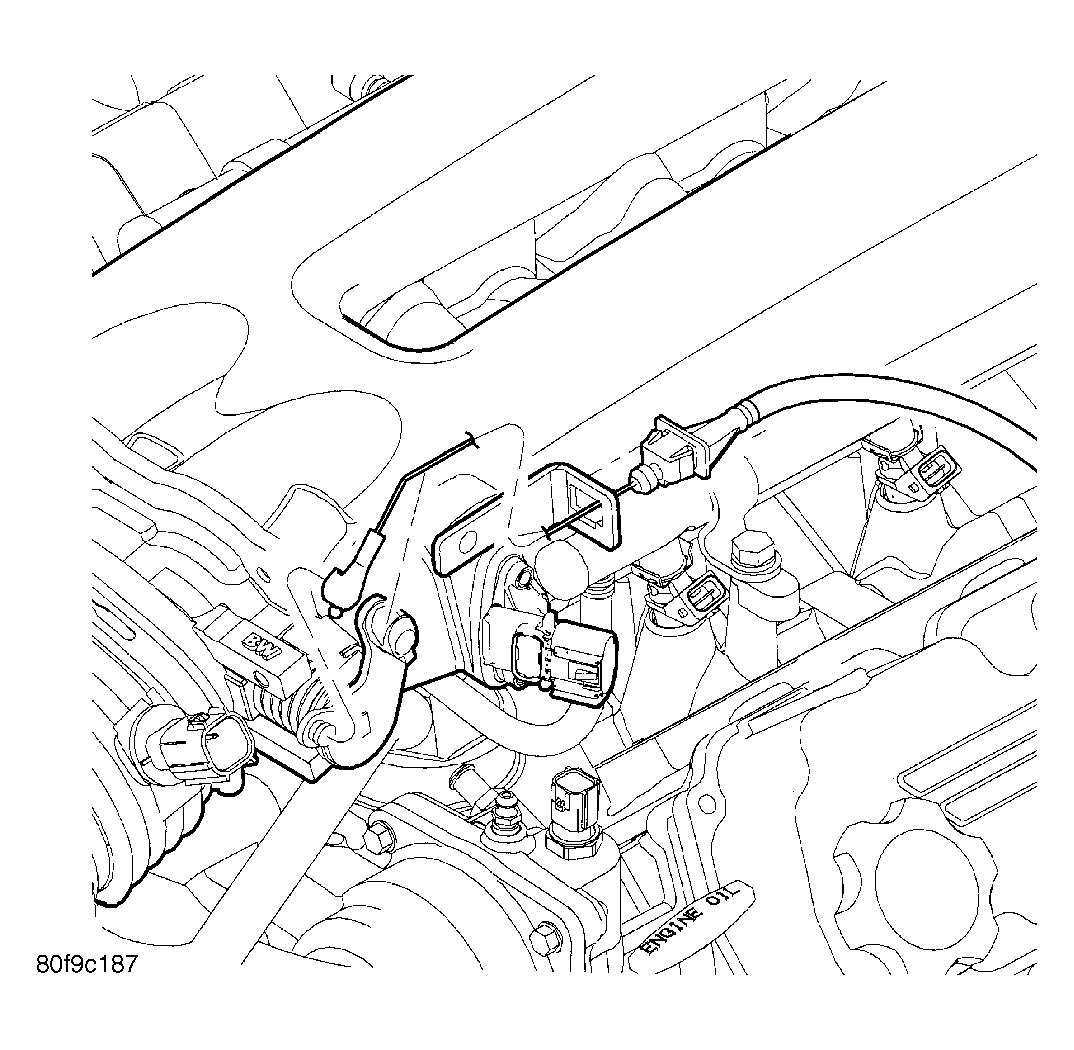

- Connect the throttle cable to the throttle body. See Figure.
