Throttle Position Sensor: Removal
WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

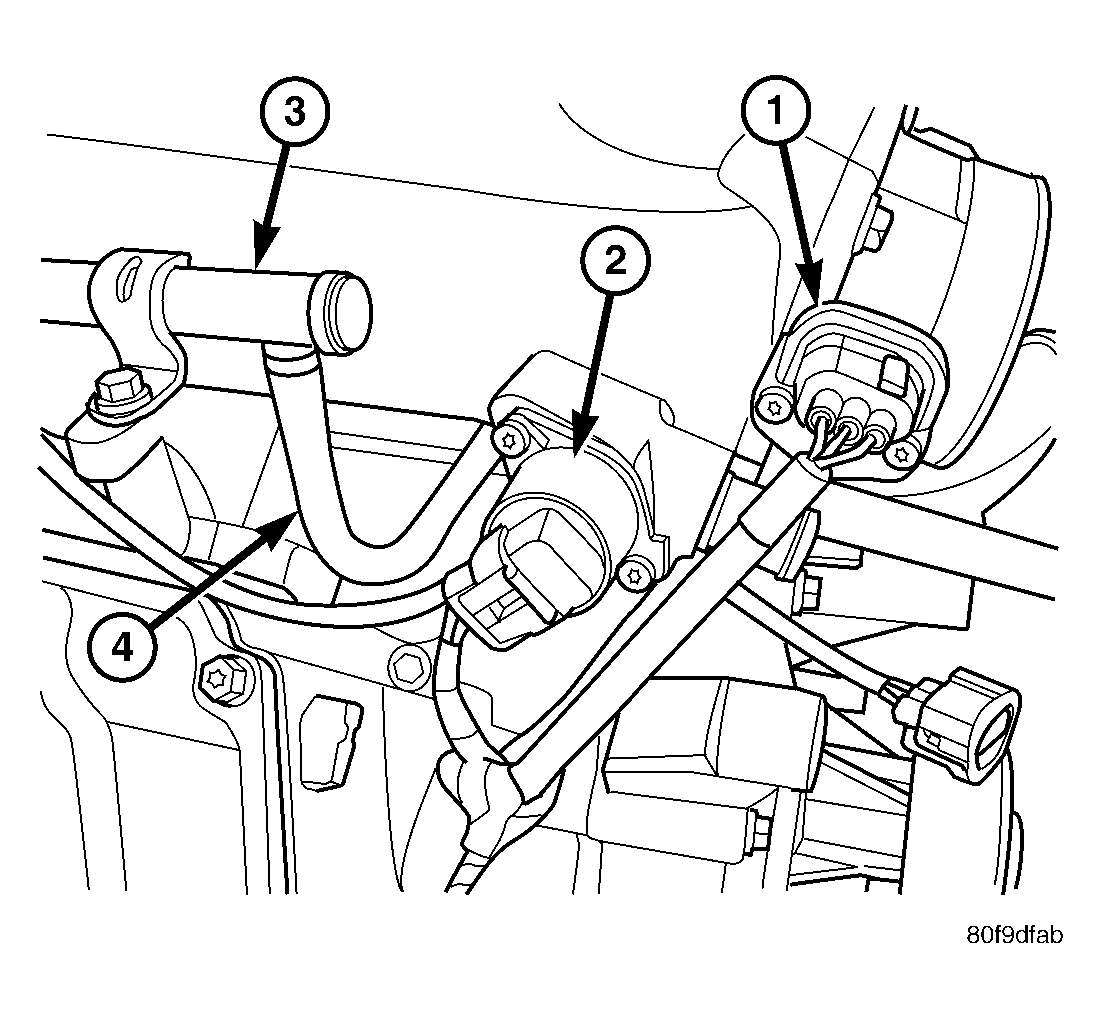

The TPS is attached to the throttle body. See Figure.
- Disconnect the TPS electrical connector.
- Remove the TPS mounting screws.
- Remove the TPS.
