Section 109 (Clutch System): Flywheel: Installation

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

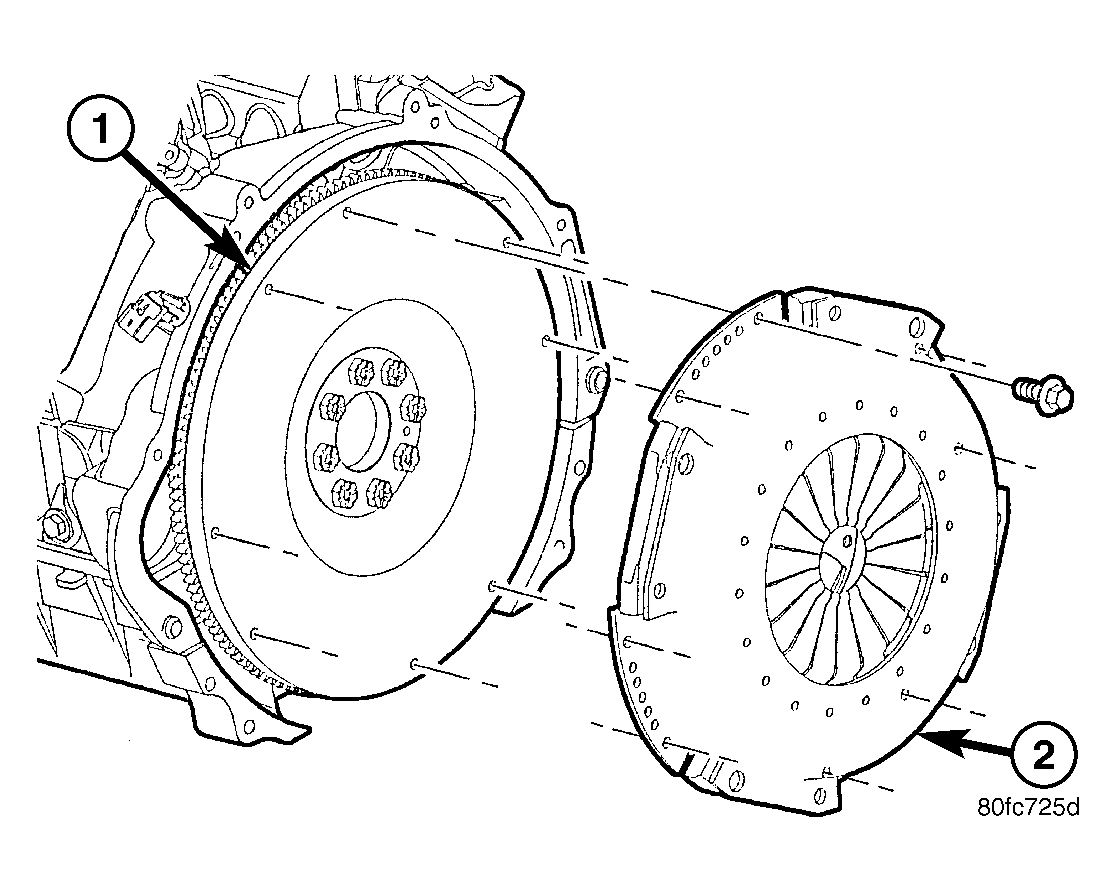

Fig 1: Installing Clutch Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - FLYWHEEL

2 - CLUTCH COVER

Clean flywheel bolts and apply thread sealer bolts.
Install flywheel (1) on engine and install flywheel bolts. See Fig 1.
Tighten flywheel bolts to 74 N.m (55 ft. lbs.).
Install clutch assembly (2), clutch housing and transmission.
