Schematic Diagrams
WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

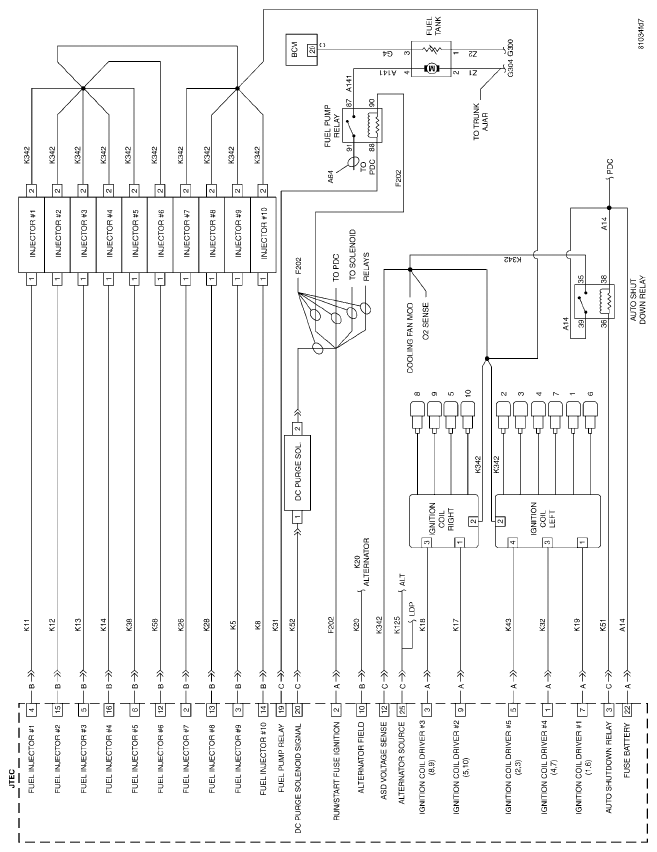

Fig 1: Engine Performance Schematic Diagrams (1 Of 3)
Courtesy of CHRYSLER

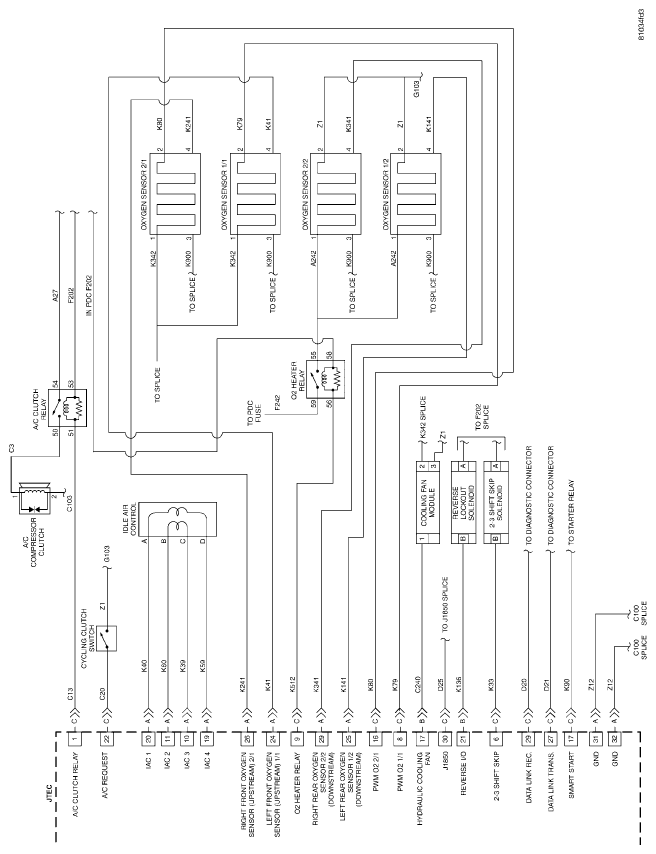

Fig 2: Engine Performance Schematic Diagrams (2 Of 3)
Courtesy of CHRYSLER

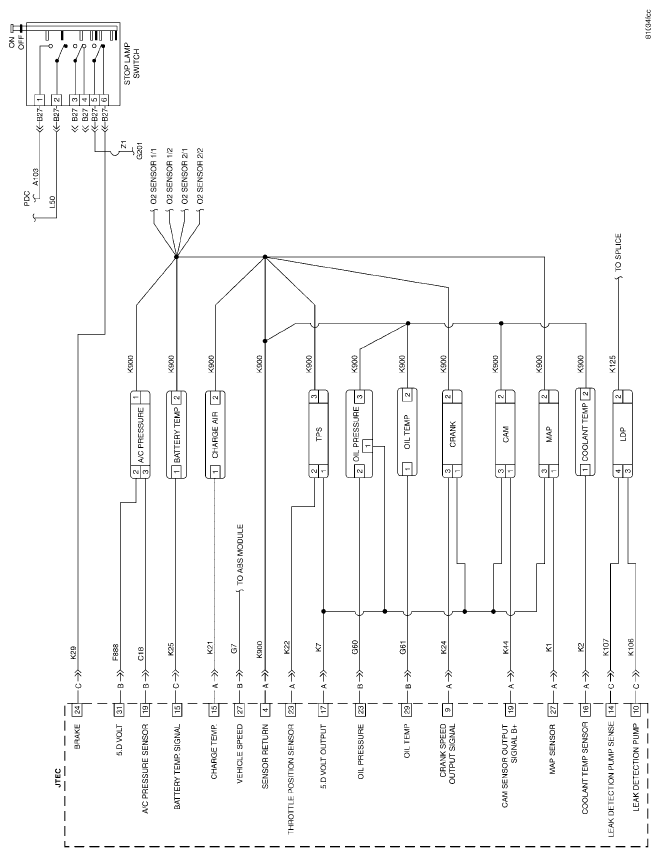

Fig 3: Engine Performance Schematic Diagrams (3 Of 3)
