Power Outlet: Removal

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.

Look inside and note position of the retaining bosses. See Fig 1.

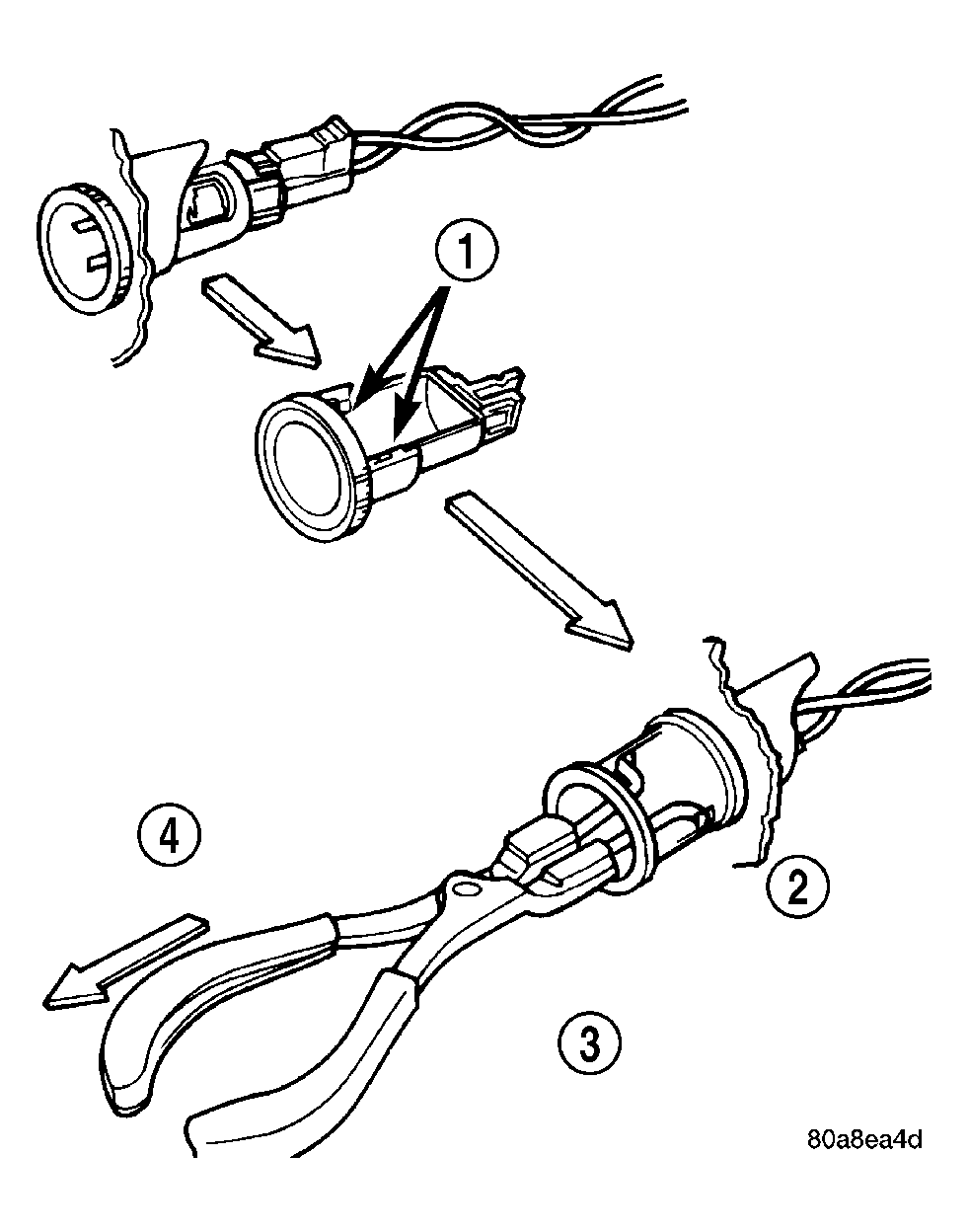

Fig 1: Power Out Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - RETAINING BOSSES-ENGAGE PLIERS HERE

2 - PARTIALLY REMOVED

3 - EXTERNAL SNAP-RING PLIERS

4 - PULL BASE OUT-THROUGH MOUNTING RING

Using external snap ring pliers with 90 degree tips. Insert pliers with tips against bosses and squeeze forcing bosses out of base.
Disconnect the base wires.
Set base aside and remove base mount ring.
