8.3L - Firing Order

WARNING: This page is about a different car, the 2006 Dodge Viper. However, it is still accessible from the selected car via links, so may be relevant.

1-10-9-4-3-6-5-8-7-2

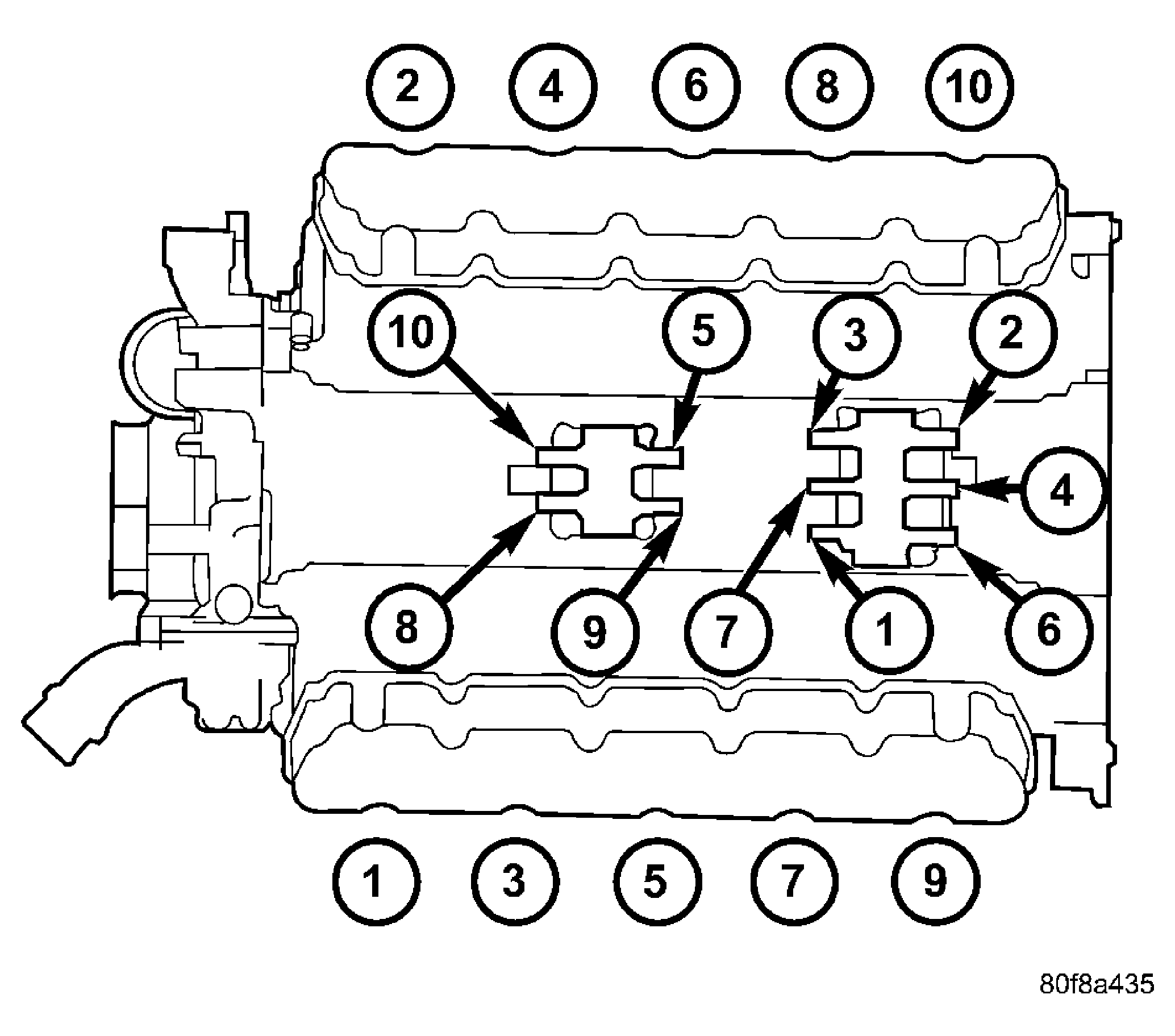

Fig 1: Firing Order - 8.3L

Courtesy of DAIMLERCHRYSLER CORP.

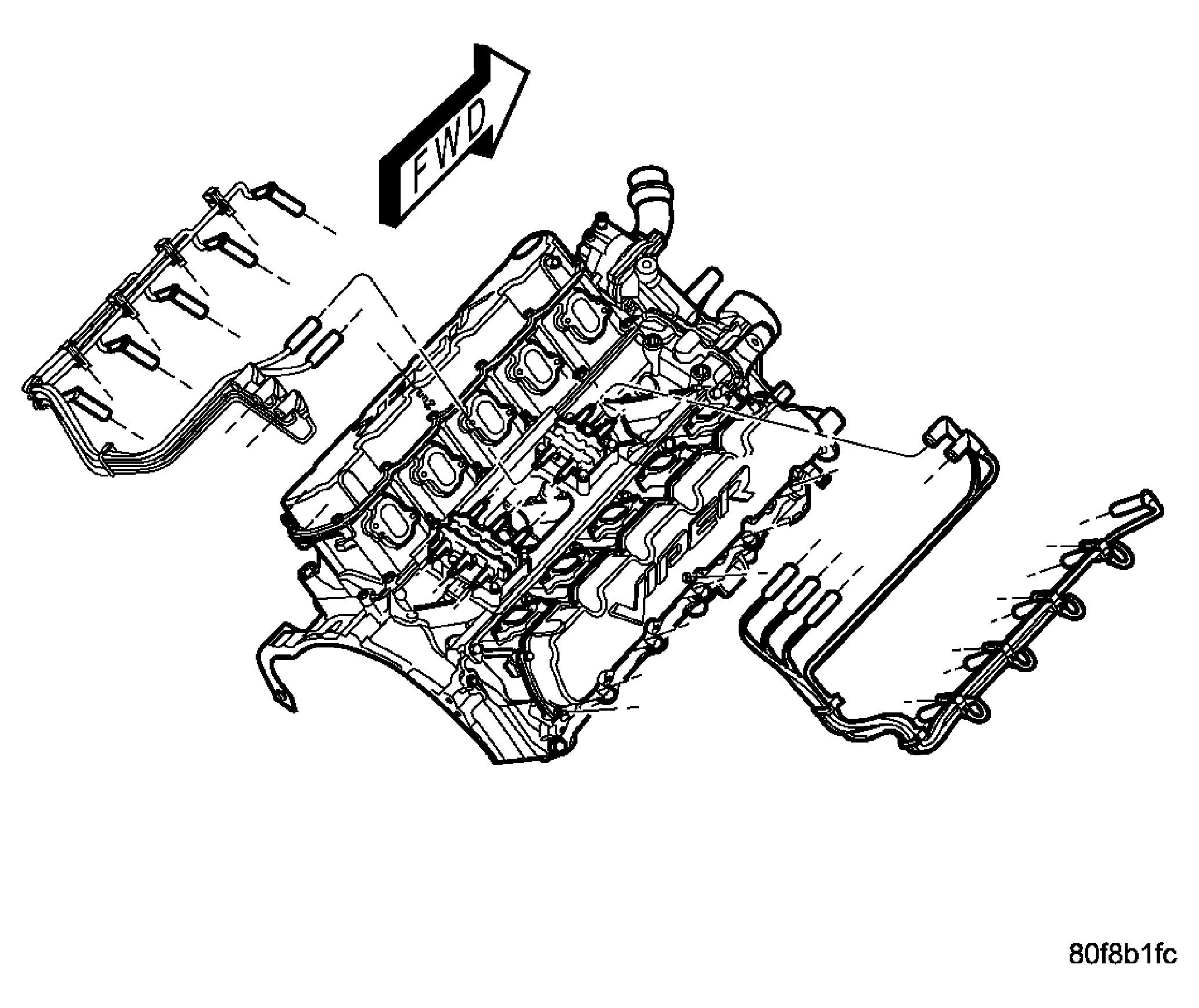

Fig 2: Wire Routing - 8.3L

Courtesy of DAIMLERCHRYSLER CORP.
