Rear Window Antenna Module: Installation

WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

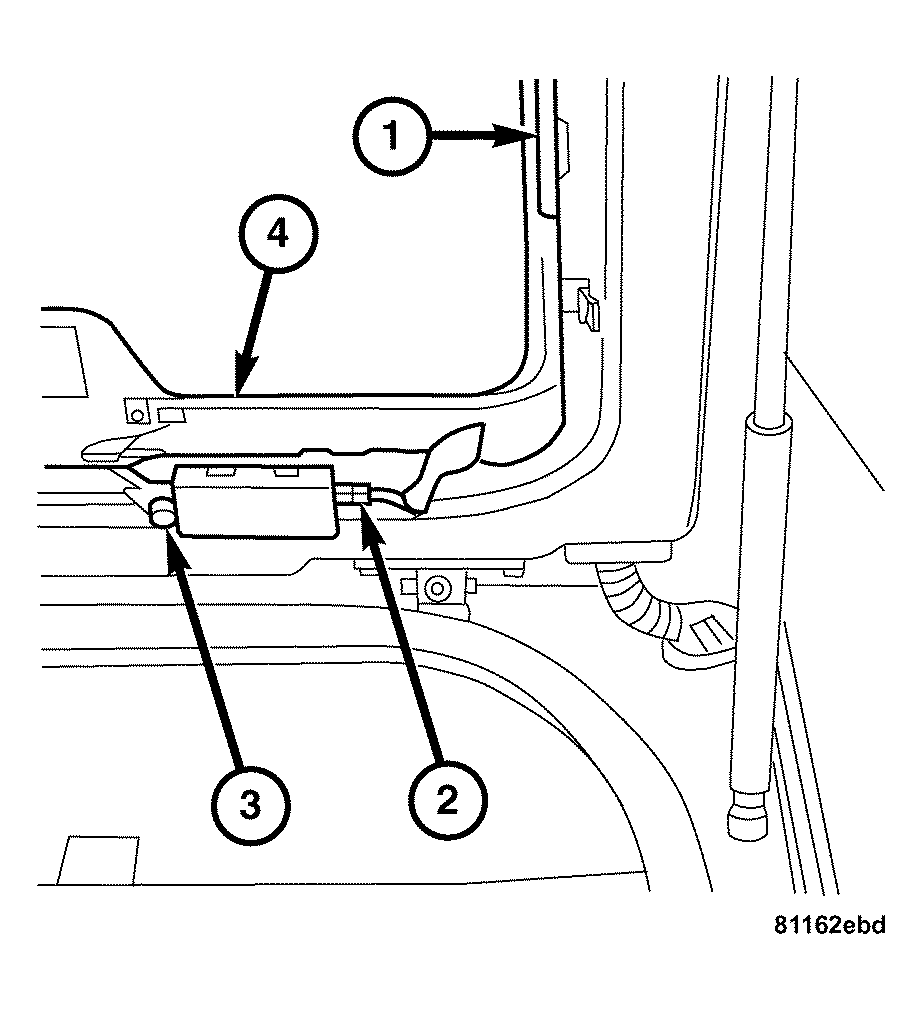

Fig 1: Identifying Antenna Components
GC0034846Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the rear window antenna module to the liftgate and attach with the retaining screw (3) and secure.
  2. Install the rear window antenna module harness connectors (2).
    NOTE: Use care when routing harnesses and allow sufficient clearance near trim panel pinch points.
  3. Install the liftgate interior trim panel. (Refer to BODY/DECKLID/HATCH/LIFTGATE/TAILGATE/TRIM PANEL - INSTALLATION) .
  4. Connect the negative battery cable.
