Power Lock Switch: Installation

WARNING: This page is about a different car, the 2006 Chrysler Crossfire. However, it is still accessible from the selected car via links, so may be relevant.

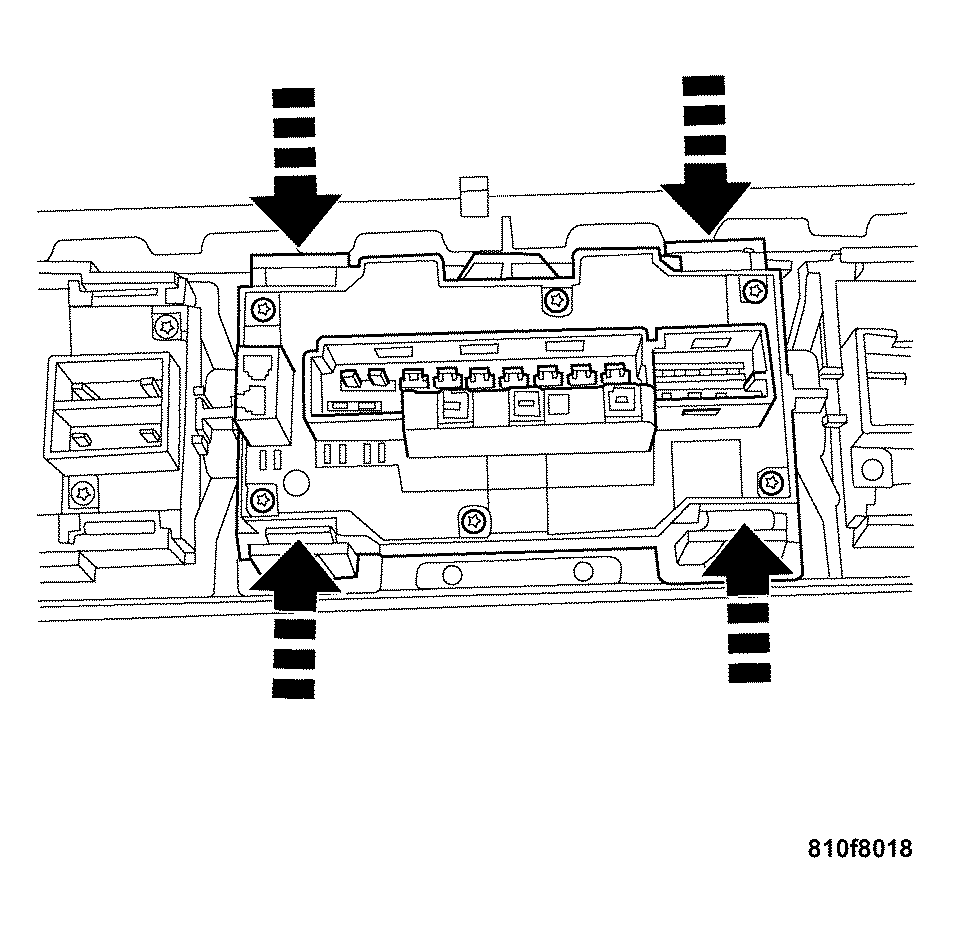

Fig 1: Installing Power Lock Switch
GC0035466Courtesy of DAIMLERCHRYSLER CORP.
  1. Align the power lock switch with the center console interior trim panel and press together until the locking tabs engage fully.
    Fig 2: Installing Heated Seat Switch
    GC0035064Courtesy of DAIMLERCHRYSLER CORP.
  2. Align the outer gang of switches over the power lock switch and press together until the locking tabs engage fully.
  3. Connect the power lock switch harness connectors.
  4. Install the trim panel on the center console. (Refer to BODY/INTERIOR/CENTER CONSOLE - INSTALLATION) .
  5. Connect the negative battery cable.
