Speed Sensor - Output: Removal

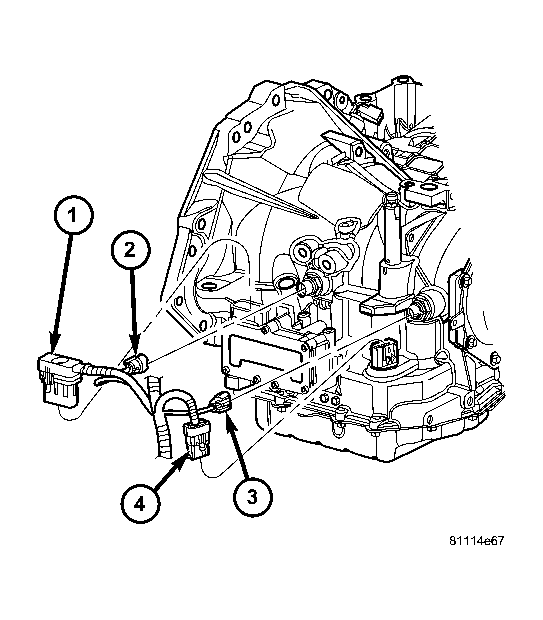

Fig 1: Transmission Connectors

GC0000554

Courtesy of DAIMLERCHRYSLER CORP.

1 - SOLENOID PACK CONNECTOR

2 - INPUT SPEED SENSOR CONNECTOR

3 - OUTPUT SPEED SENSOR CONNECTOR

4 - TRANSMISSION RANGE SENSOR CONNECTOR

Disconnect battery negative cable.
Raise vehicle on hoist.
Disconnect output speed sensor connector (3). See Fig 1.

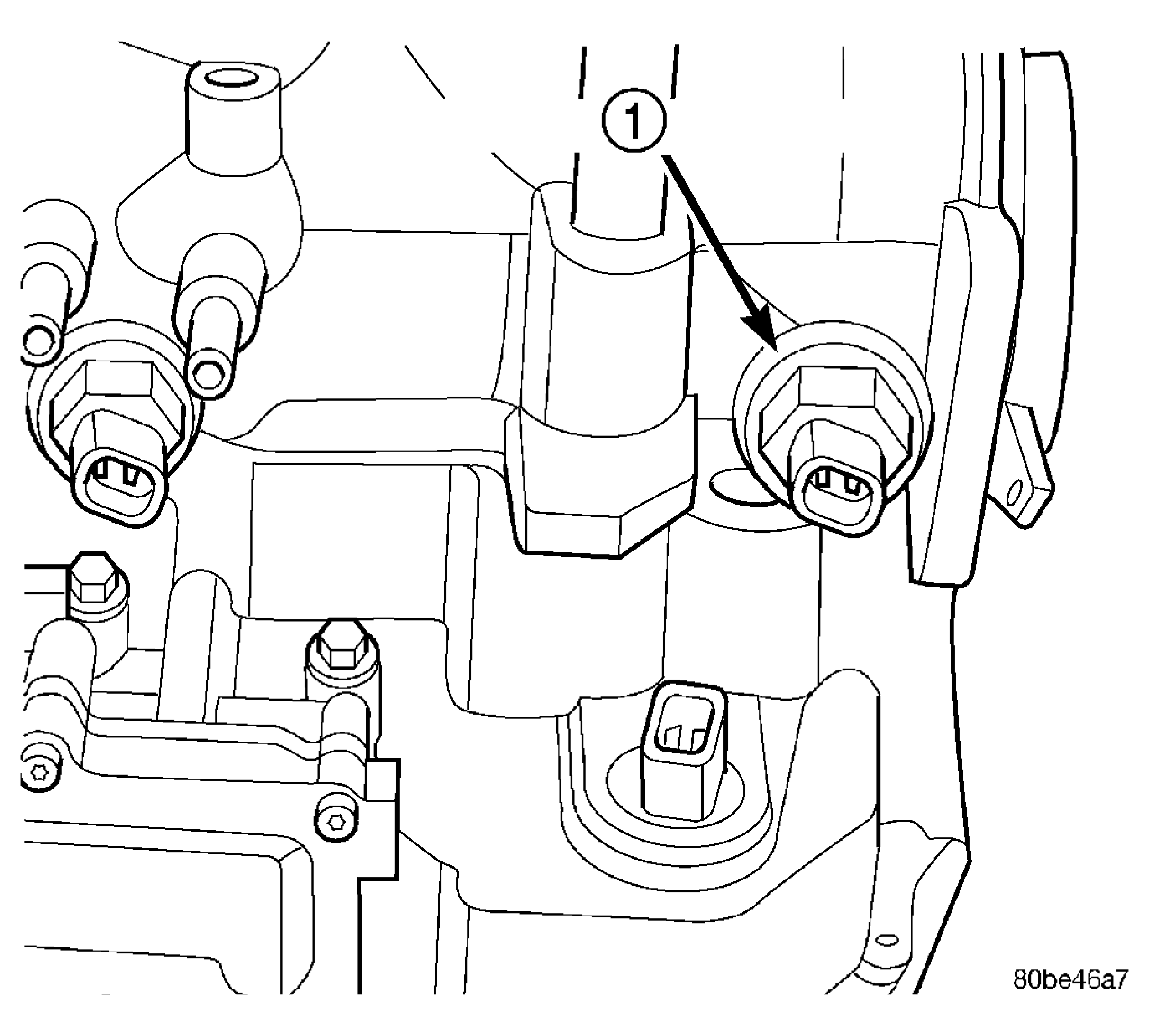

Fig 2: Identifying Output Speed Sensor
Courtesy of DAIMLERCHRYSLER CORP.

1 - OUTPUT SPEED SENSOR
Unscrew and remove output speed sensor (1). See Fig 2.

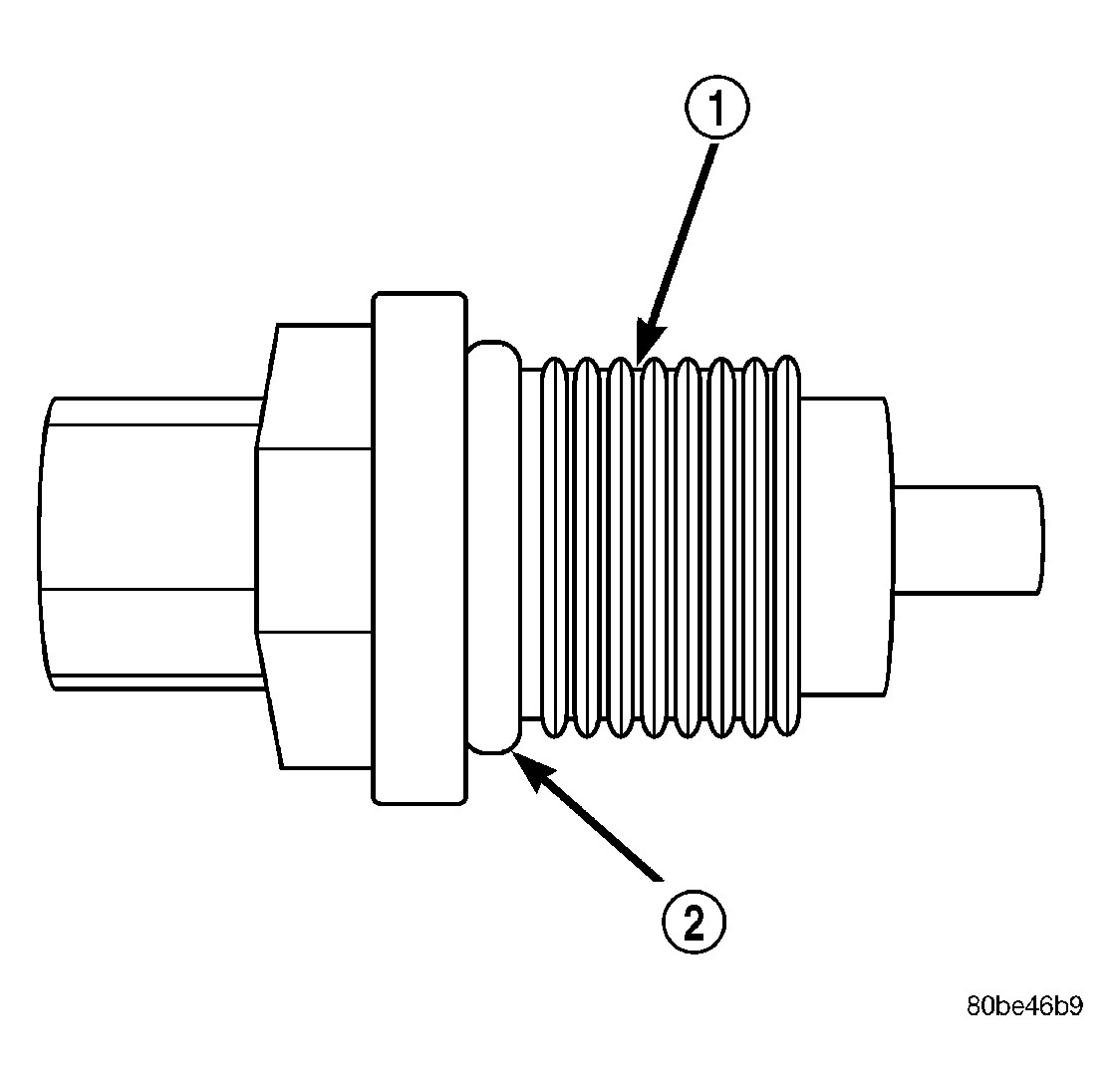

Fig 3: O-Ring Location
Courtesy of DAIMLERCHRYSLER CORP.

1 - OUTPUT SPEED SENSOR

2 - O-RING
Inspect speed sensor o-ring (2) and replace if necessary. See Fig 3.
