Charging System: Generator: Installation: 3.3/3.8L

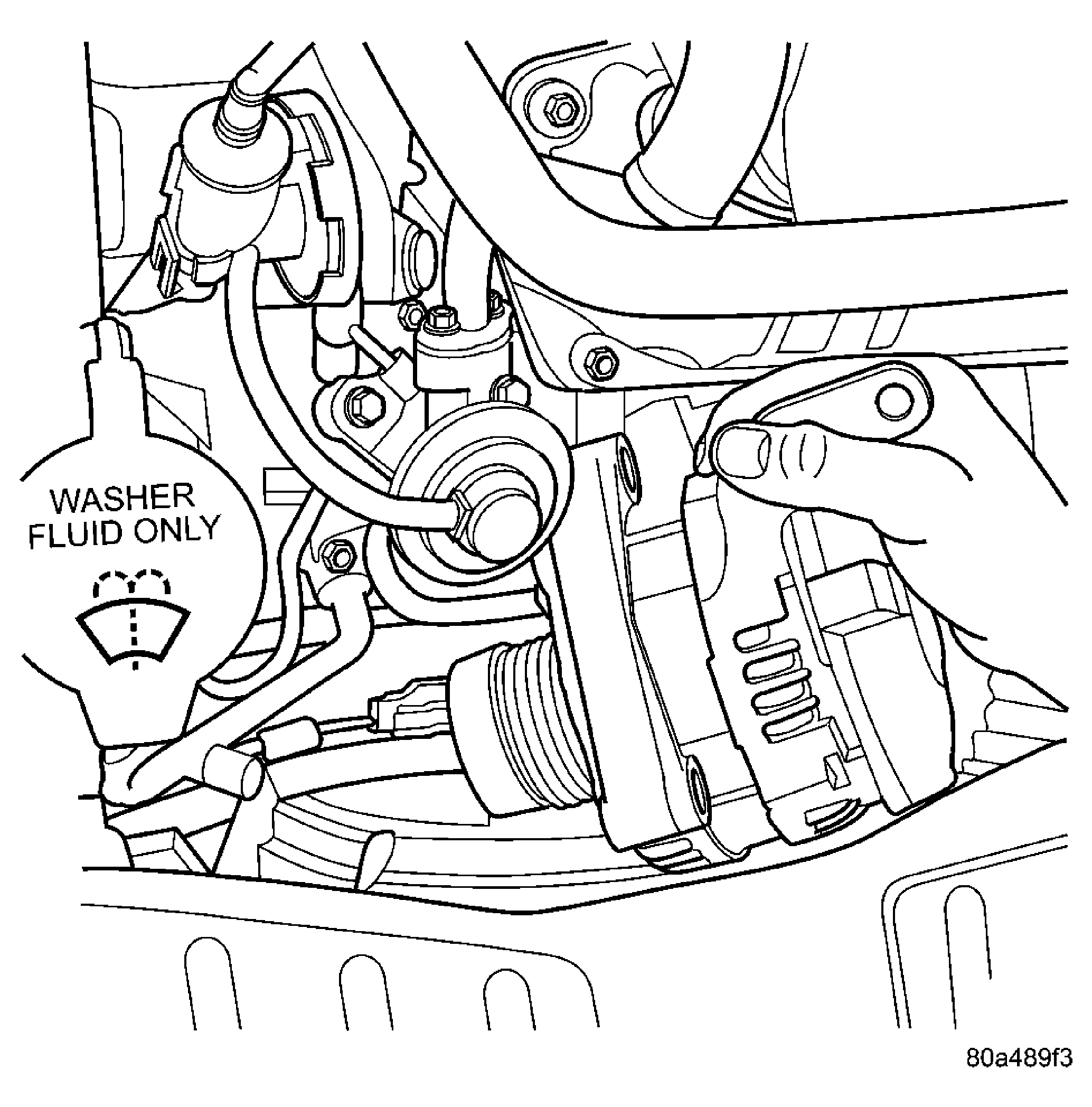

  1. Roll and place generator in position on vehicle. See Figure.
  2. Install upper bolts to hold generator in place.
  3. Lubricate the o-ring. Install oil dip stick tube.
  4. Install the upper oil dip stick tube bolt.
  5. Place B+ terminal in position on generator.
  6. Install nut to hold B+ wire terminal to back of generator.
  7. Connect the push-in field wire connector into back of generator.
  8. Raise vehicle and support.
  9. Install the lower mounting bolt and tighten.

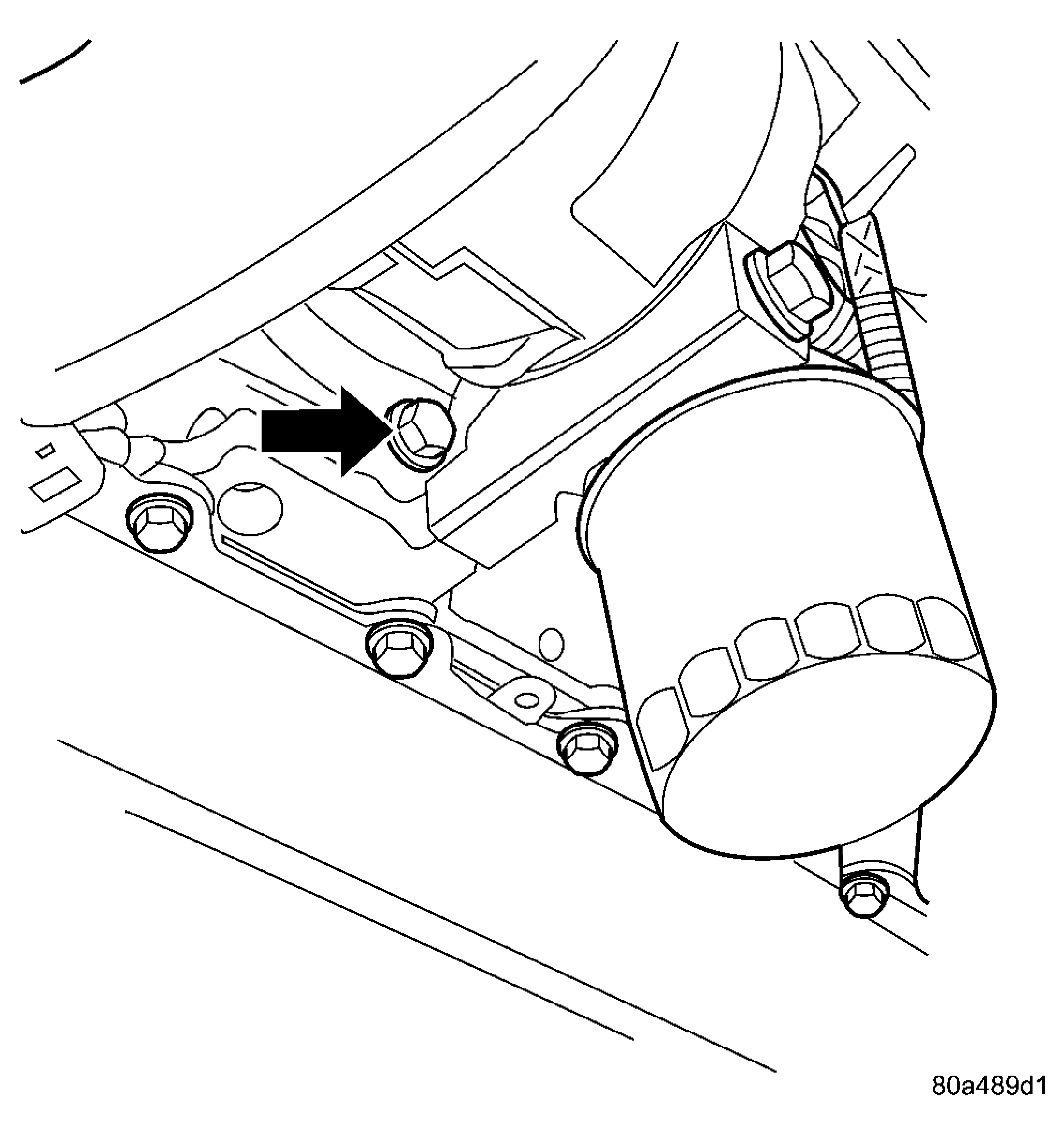

  10. Install the lower oil dip stick tube bolt and tighten. See Figure.
  11. Install accessory drive belt, refer to COOLING for proper procedures.
  12. Install the right front lower splash shield.
  13. Lower vehicle.
  14. Install wiring harness to the oil dip stick tube
  15. Connect battery negative cable.
  16. Verify generator output rate.
