Schematic Diagrams

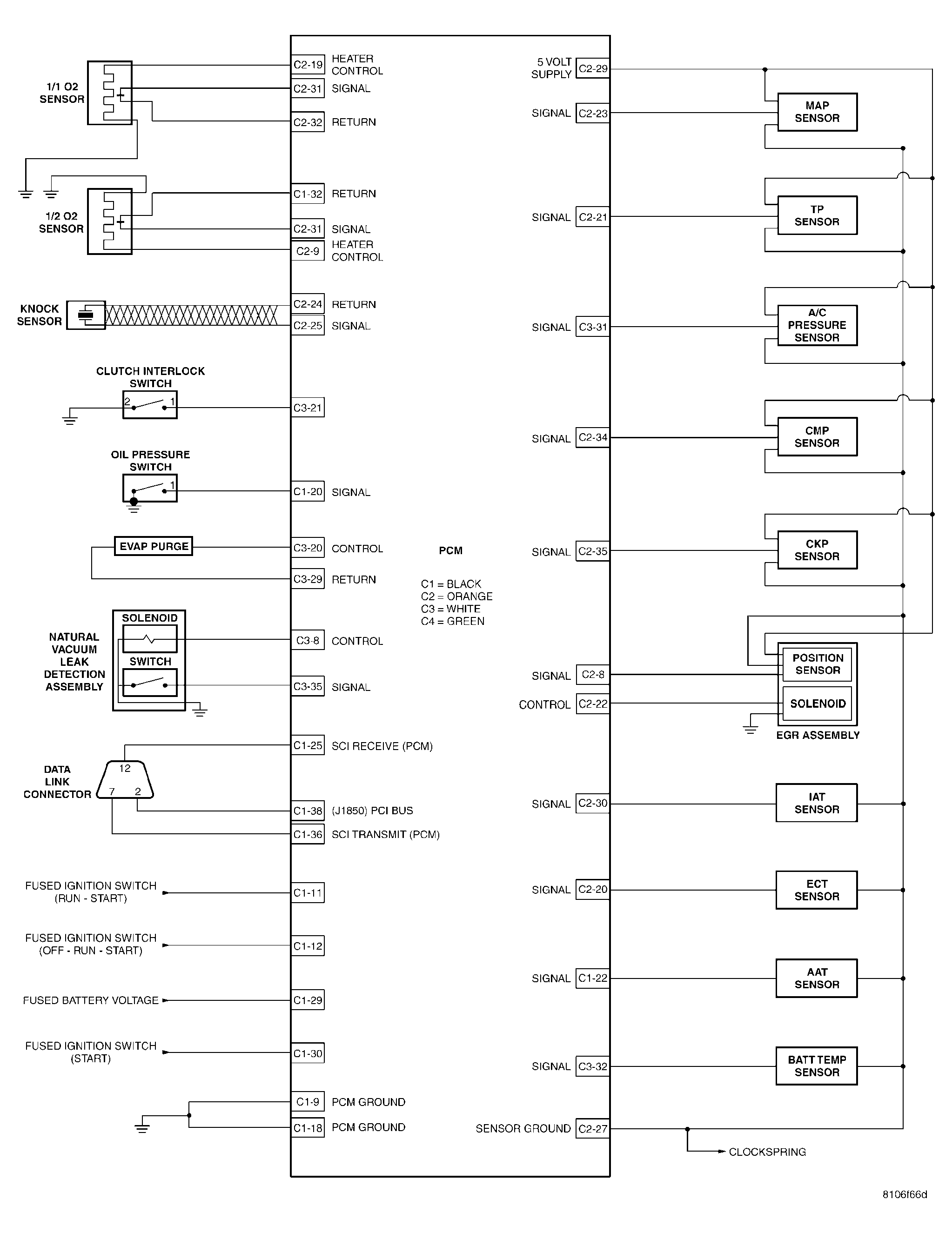

Fig 1: Schematic Diagrams
G04528135Courtesy of DAIMLERCHRYSLER CORPORATION

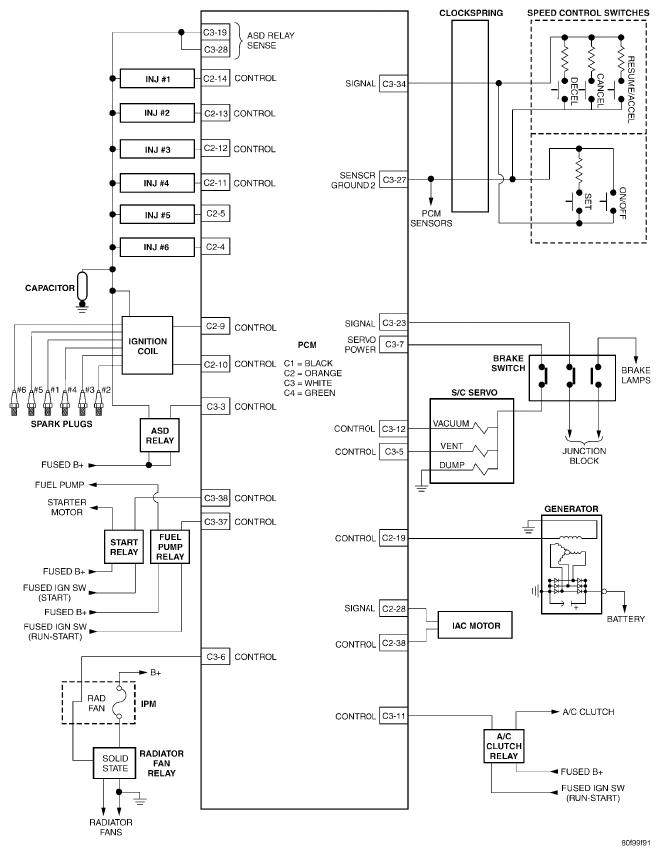

Fig 2: Schematic Diagrams
G04763153Courtesy of DAIMLERCHRYSLER CORPORATION
