Module-Power-Blower Motor: Installation

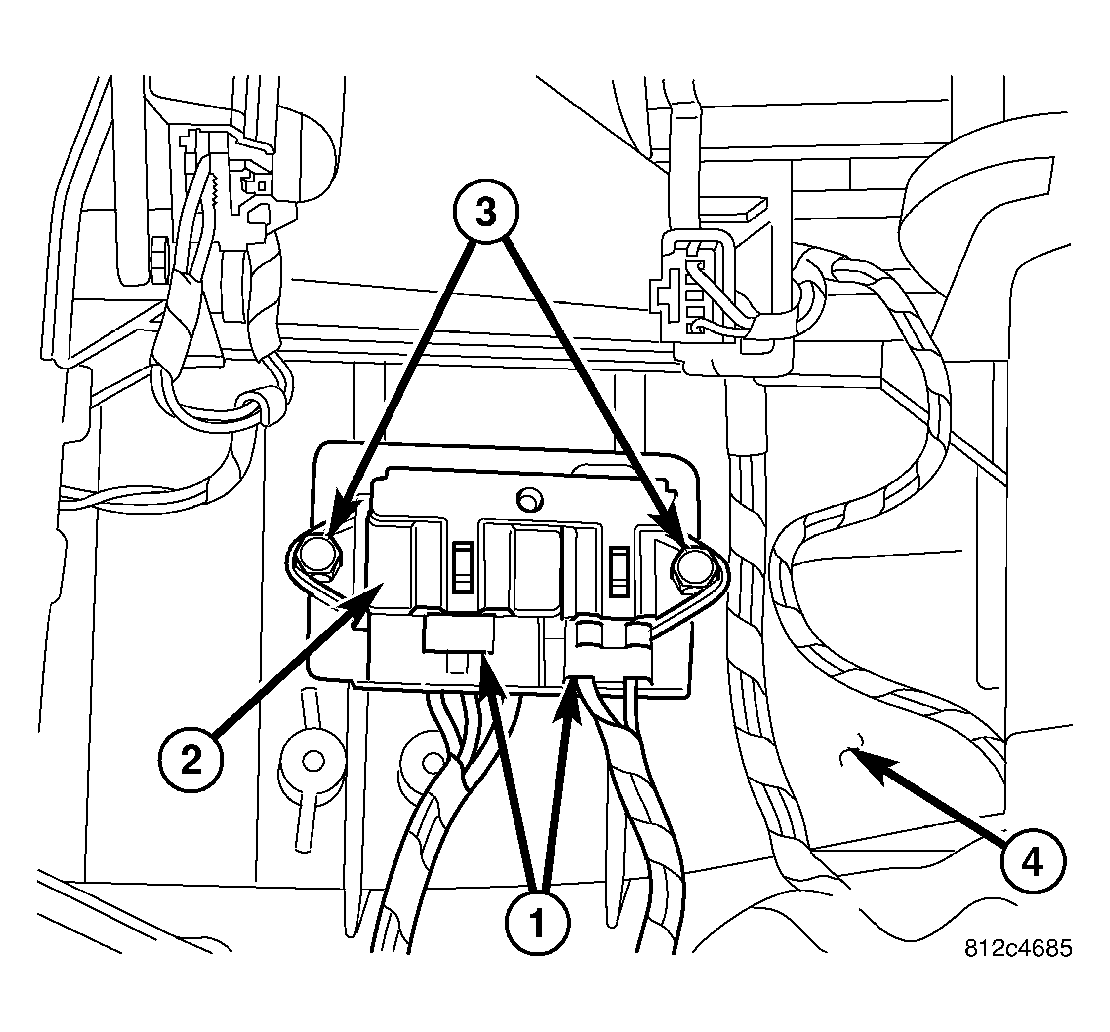

Fig 1: Removing/Installing Blower Motor Power Module
GC0013933Courtesy of CHRYSLER LLC
NOTE: LHD model shown. RHD model similar.
  1. Position the blower motor power module (2) into the HVAC housing (4).
  2. Install the two screws (3) that secure the blower motor power module to the HVAC housing. Tighten the screws to 2 N.m (17 in. lbs.).
  3. Connect the two wire harness connectors (1) to the blower motor power module.
  4. Install the glove box into the instrument panel. Refer to INSTALLATION .
  5. Reconnect the negative battery cable.
