Engine Coolant Temperature Sensor (Diesel) Connector End View

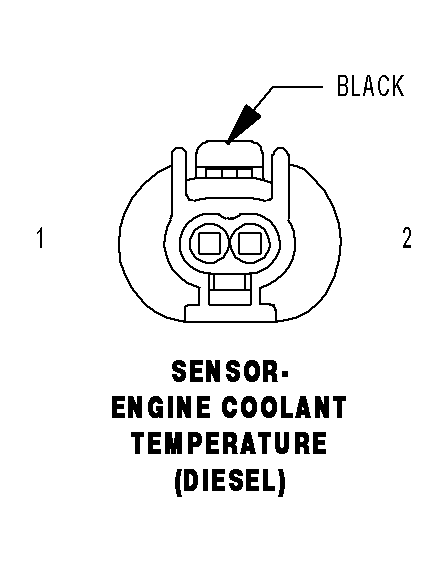

SENSOR-ENGINE COOLANT TEMPERATURE (DIESEL) - BLACK 2 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K222 20BR/RD |
ENGINE COOLANT TEMPERATURE SENSOR GROUND |
| 2 |
K2 20DG/RD |
ENGINE COOLANT TEMPERATURE SENSOR SIGNAL |
