Exhaust System: Description

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

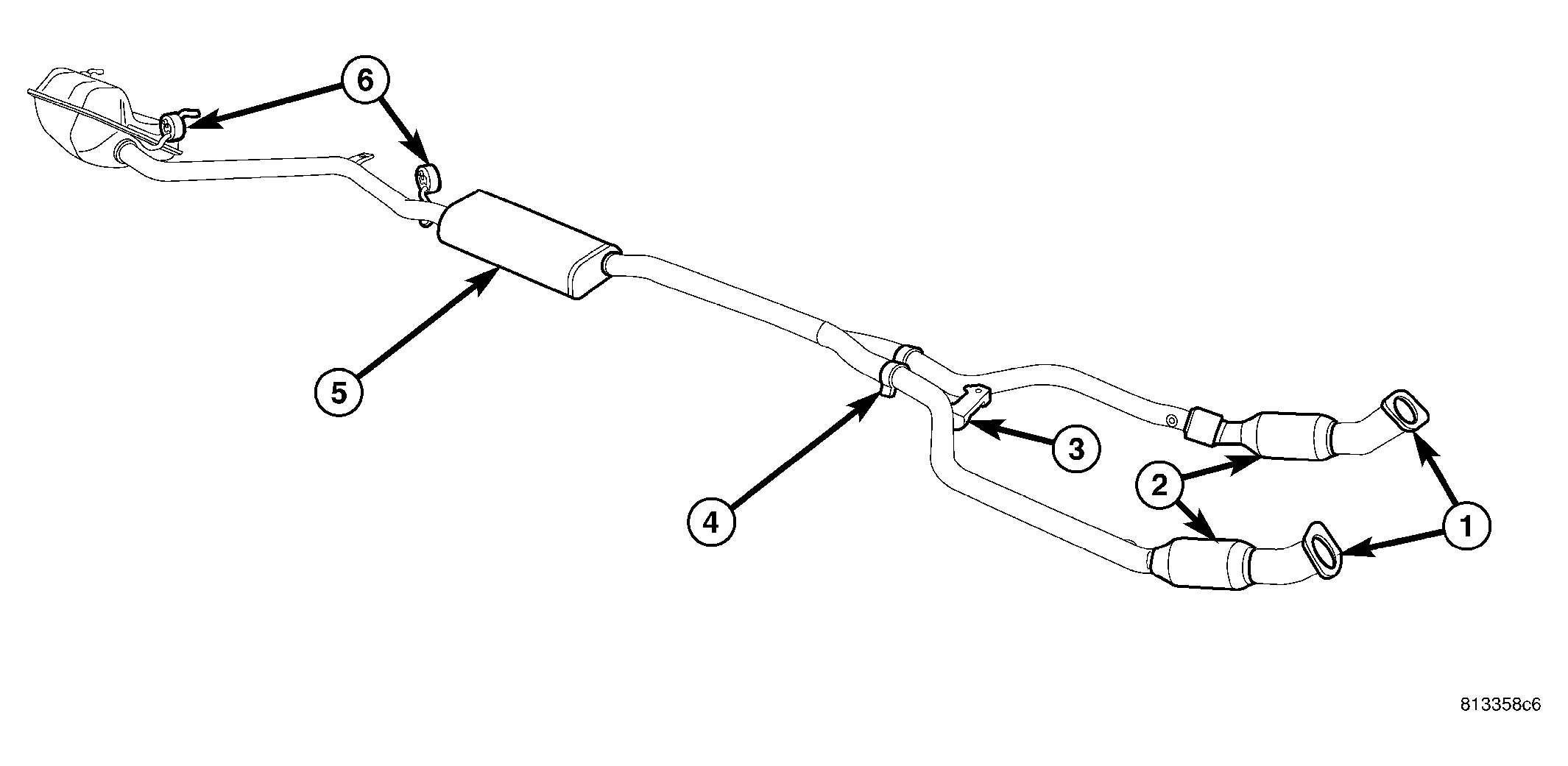

Fig 1: Exhaust System - V6 Single System

Courtesy of DAIMLERCHRYSLER CORP.

1 - BALL FLANGE

2 - CATALYTIC CONVERTER ASSEMBLY

3 - CROSS BRACE

4 - BAND CLAMPS

5 - RH REAR MUFFLER AND RESONATOR

6 - ISOLATORS

The exhaust system consists of two front close coupled catalytic converters, a RH rear muffler and resonator assembly (5), and on vehicles equipped with dual exhaust, LH resonator and tailpipe assembly (4).

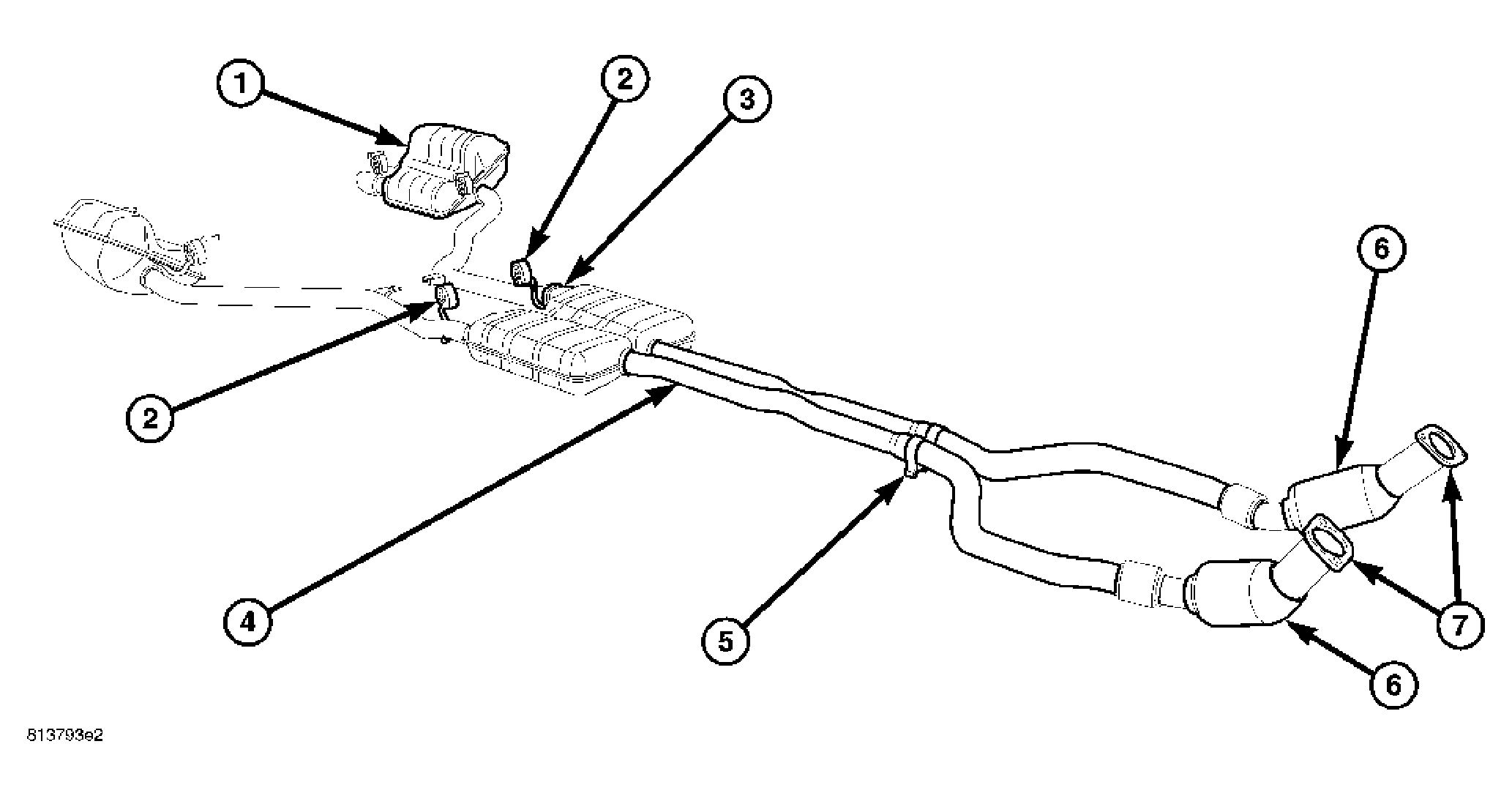

Fig 2: Exhaust System - V8 Duel System

Courtesy of DAIMLERCHRYSLER CORP.

1 - LH REAR RESONATOR AND TAIL PIPE

2 - ISOLATOR

3 - BALL FLARE FLANGE 5.7L / BALL FLARE BAND CLAMP 6.1L

4 - RH REAR MUFFLER AND RESONATOR

5 - BAND CLAMPS

6 - CATALYTIC CONVERTER ASSEMBLY

7 - BALL FLANGE

Both catalytic converters attach directly to the exhaust manifold using studs and nuts. The exhaust down pipes exit the converters and connect into the rear muffler and resonator (1 and 4). On the 2.7L/3.5L equipped vehicles, there is a flex coupler directly behind the LH catalytic converter. The upstream oxygen sensors are located in each exhaust manifold. On 5.7L equipped vehicles there is a flex coupler behind both LH and RH catalytic converters. The downstream oxygen sensors are located behind the flex couplers. The 6.1L does not use flex couplers. The downstream oxygen sensors are located behind the catalytic converters.

For the single exhaust systems, the RH muffler, resonator and tailpipe (4) are one single unit.
