Air Intake System: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

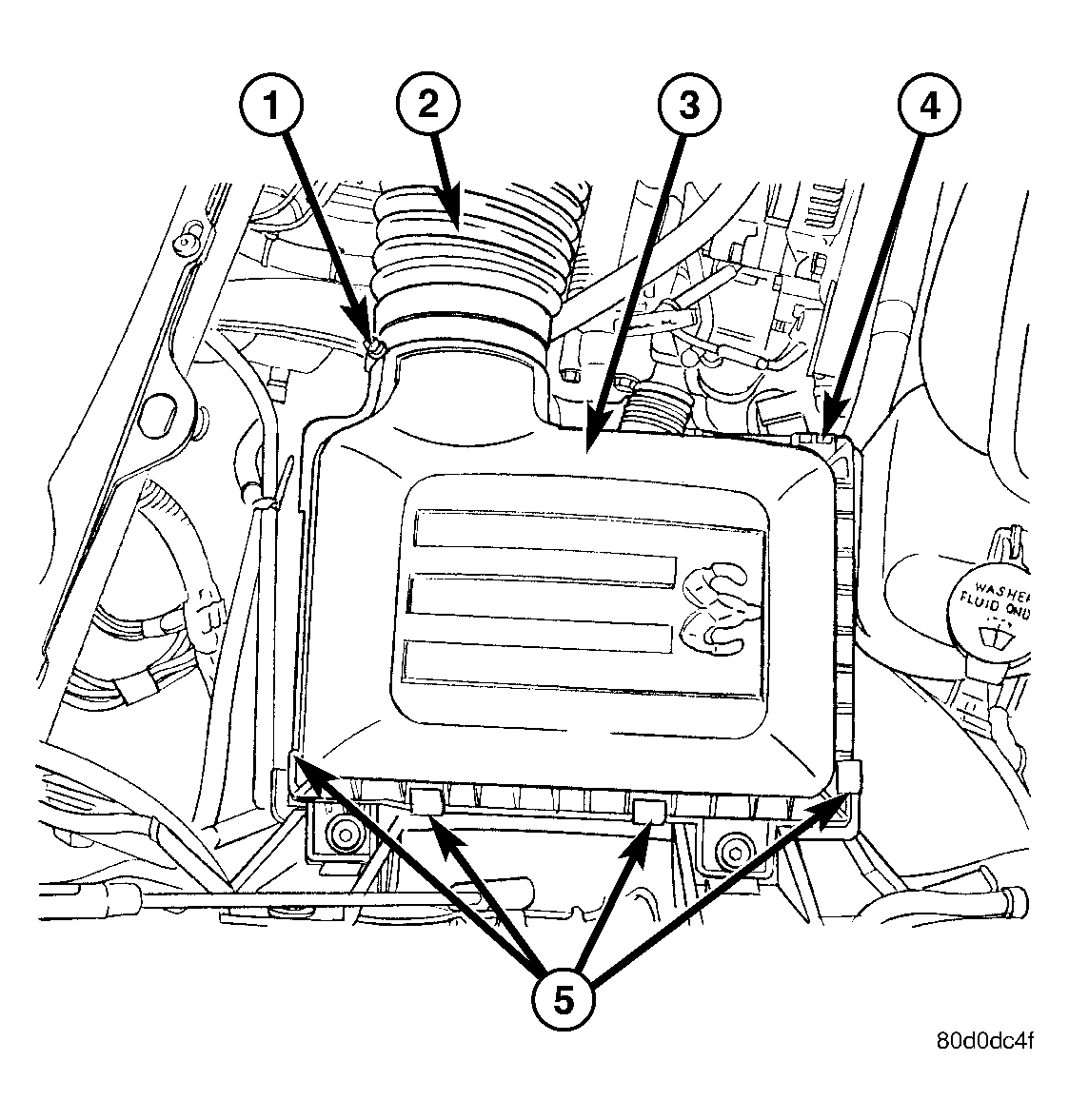

Fig 1: Air Cleaner Cover
GC0003947Courtesy of DAIMLERCHRYSLER CORP.
  1. Install filter element into housing.
  2. Position housing cover into housing locating tabs (4).
  3. Pry up 4 spring clips(5) and lock cover to housing.
  4. Install air duct to air cleaner cover and tighten hose clamp to 3 N.m (30 in. lbs.) torque.
  5. If any other hose clamps were removed from air intake system, tighten them to 3.4 N.m (30 in. lbs.) torque.
  6. If any bolts were removed from air resonator housing or air intake tubing, tighten them to 4.5 N.m (40 in. lbs.) torque.

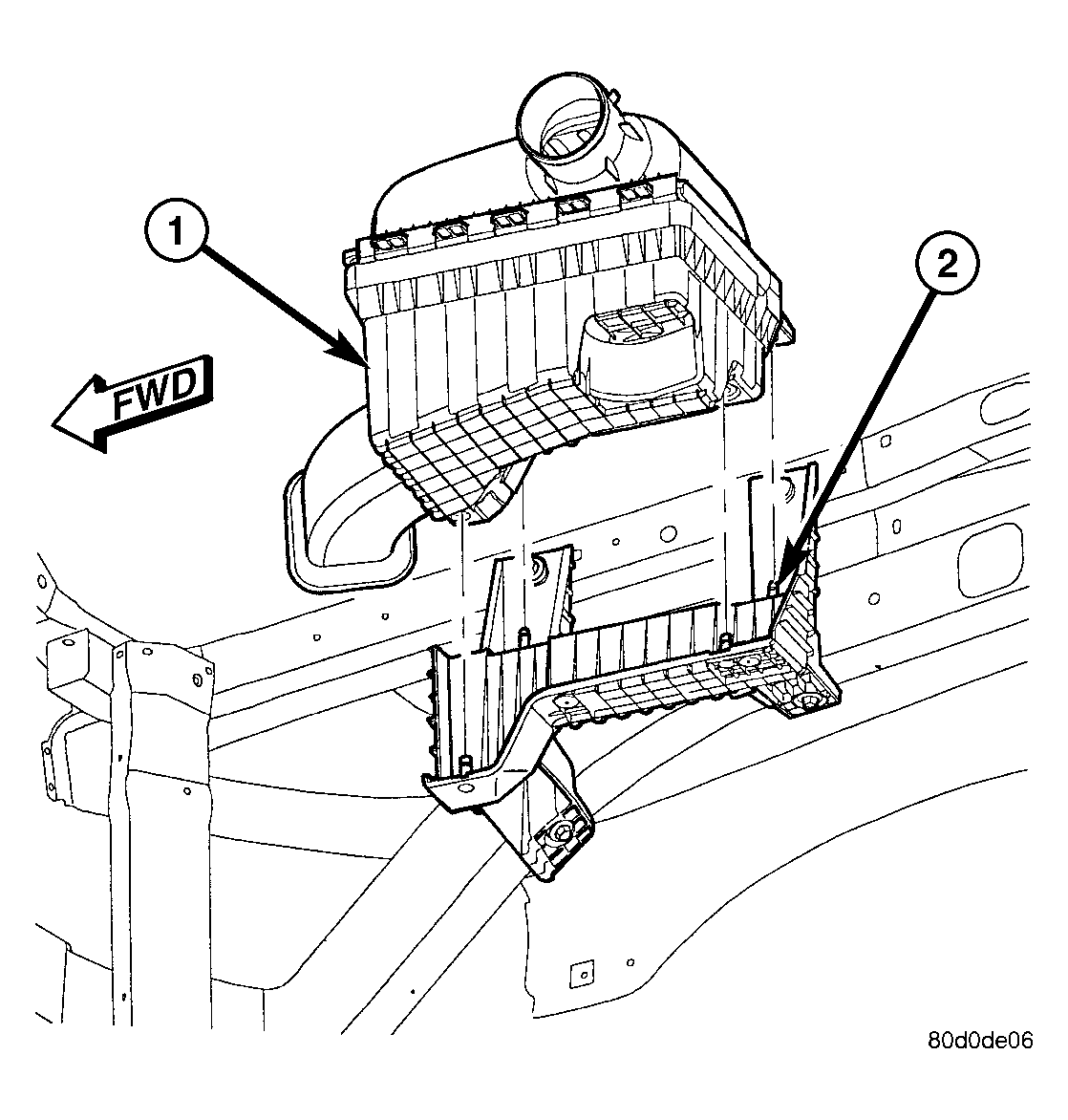

    Fig 2: Air Cleaner Housing
    GC0003948Courtesy of DAIMLERCHRYSLER CORP.
  7. Install filter housing (1) into locating pins (2).
