Engine Mounting-Front: Installation: Notes

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Engine Mount Bracket LH
GC0015461Courtesy of DAIMLERCHRYSLER CORP.
1 - Engine Mount Bracket
2 - Bolt
Fig 2: Engine Mount Bracket RH
GC0015460Courtesy of DAIMLERCHRYSLER CORP.
1 - Engine Mount Bracket
2 - Bolt
  1. Install the engine mount brackets (1), if removed.
    Fig 3: Engine Hydromount LH
    GC0015463Courtesy of DAIMLERCHRYSLER CORP.
    1 - Bolt
    2 - Hydromount
    3 - Studs
    Fig 4: Engine Hydromount RH
    GC0015462Courtesy of DAIMLERCHRYSLER CORP.
    1 - Studs
    2 - Nut
    3 - Hydromount
    4 - Studs
  2. Install hydromount (3) on the engine. Tighten hydromount to bracket fasteners.
  3. Install the studs (3,1) to the hydromount (2).

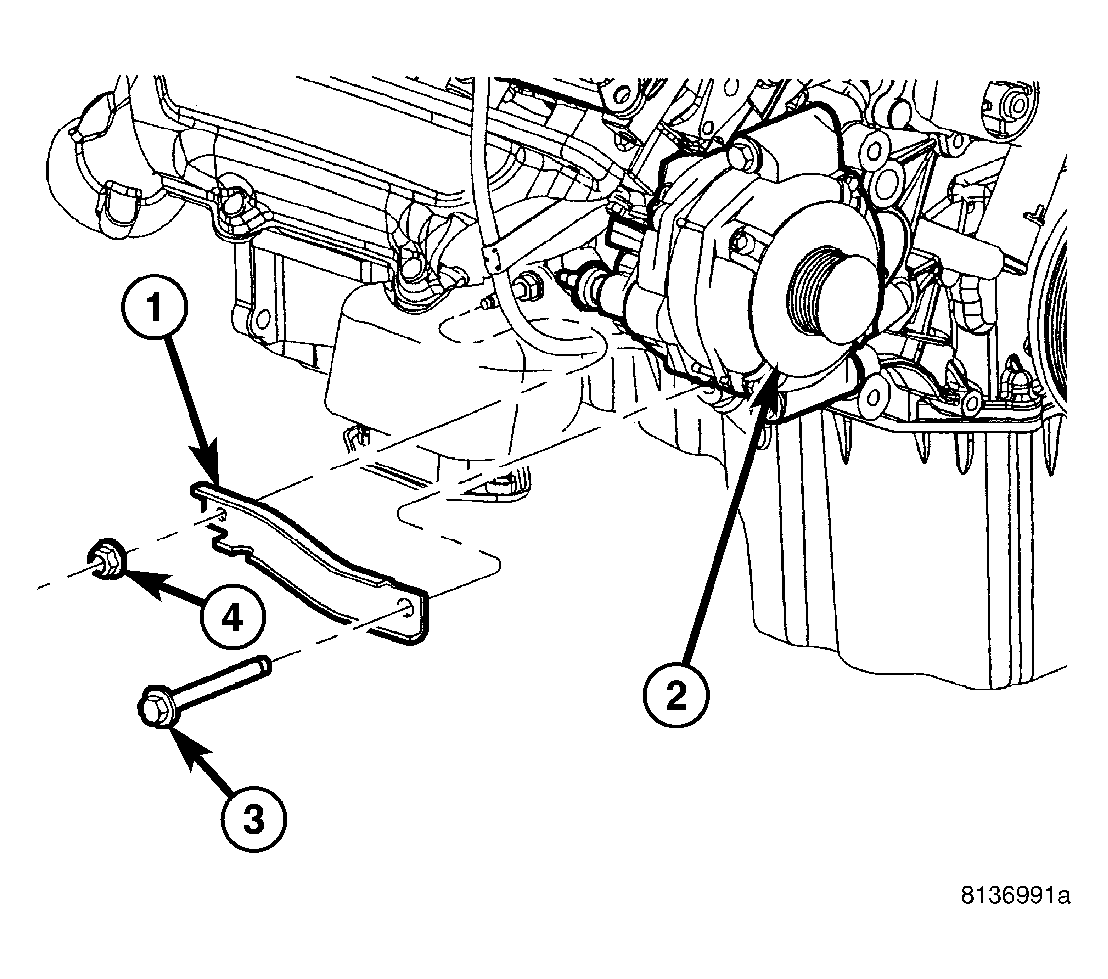

    Fig 5: Generator Support Bracket-5.7L
    GC0015465Courtesy of DAIMLERCHRYSLER CORP.
  4. Install the generator support bracket (1).
  5. Lower the engine.
    Fig 6: Engine Hydromount LH
    GC0015463Courtesy of DAIMLERCHRYSLER CORP.
    1 - Bolt
    2 - Hydromount
    3 - Studs
    Fig 7: Engine Hydromount RH
    GC0015462Courtesy of DAIMLERCHRYSLER CORP.
    1 - Studs
    2 - Nut
    3 - Hydromount
    4 - Studs
  6. Install the nuts on the studs (3,4), and tighten.
  7. Lower vehicle.
  8. Connect negative battery cable.
