Engine Mounting-Front: Removal: Notes

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

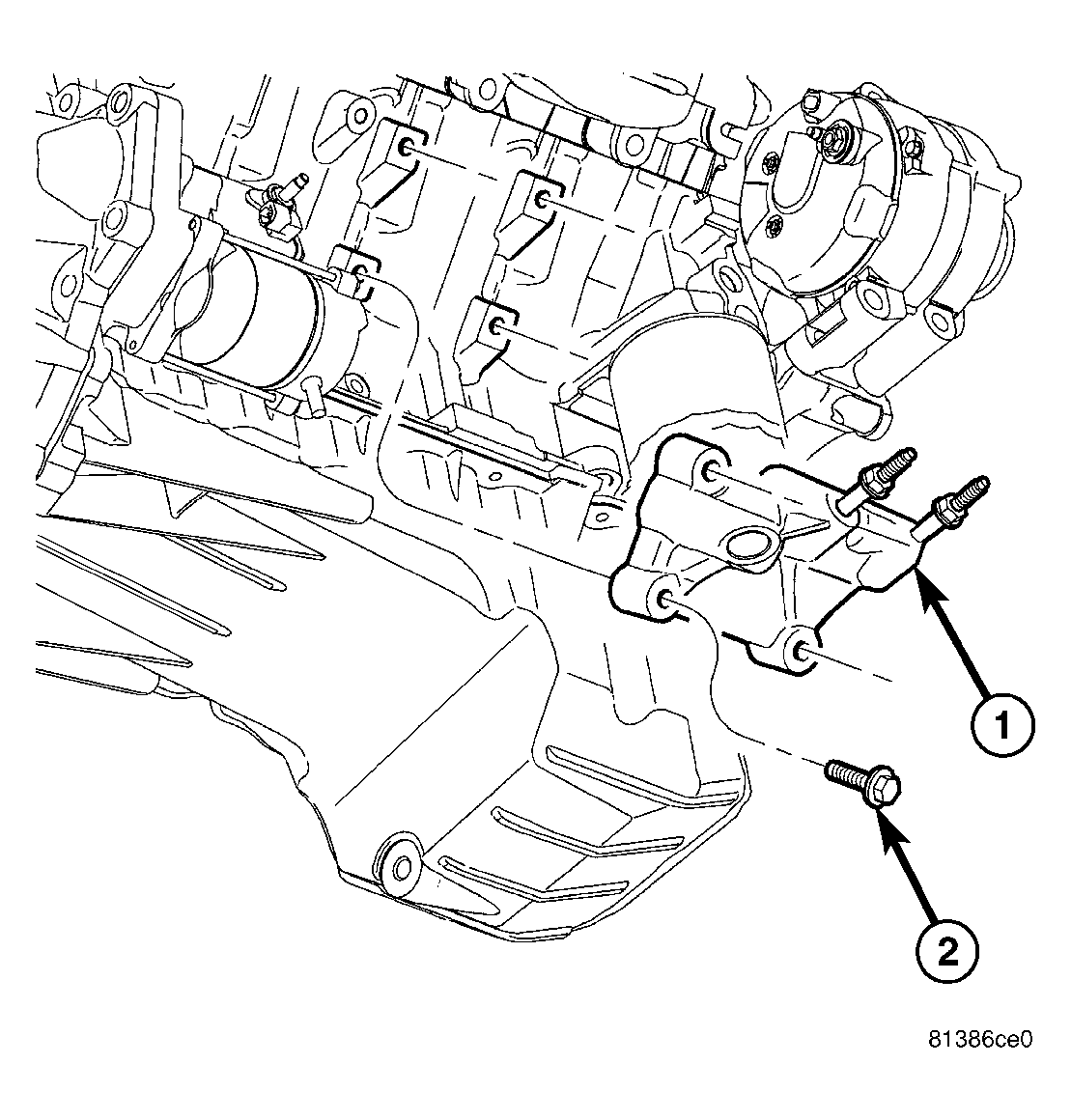

Fig 1: Generator Support Bracket-5.7L

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect negative battery cable.
Raise vehicle.

Remove the generator support bracket (1).

Fig 2: Engine Hydromount LH

Courtesy of DAIMLERCHRYSLER CORP.

1 - Bolt

2 - Hydromount

3 - Studs

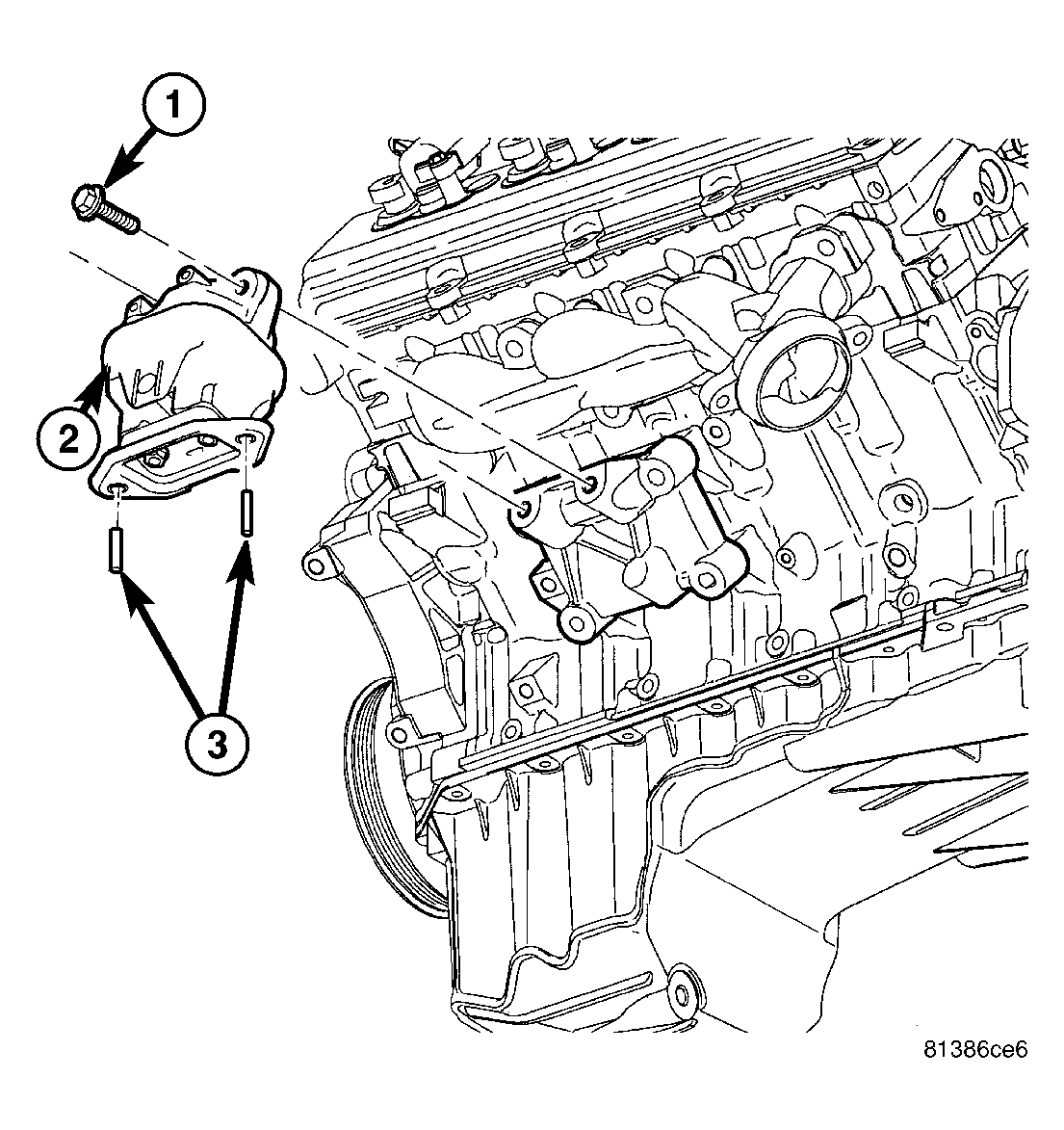

Fig 3: Engine Hydromount RH

Courtesy of DAIMLERCHRYSLER CORP.

1 - Studs

2 - Nut

3 - Hydromount

4 - Studs

Remove hydromount to frame studs (3,4) and nuts.
Raise engine using suitable jack.
Remove hydromount to bracket fasteners (1,2).
Remove hydromount from engine.

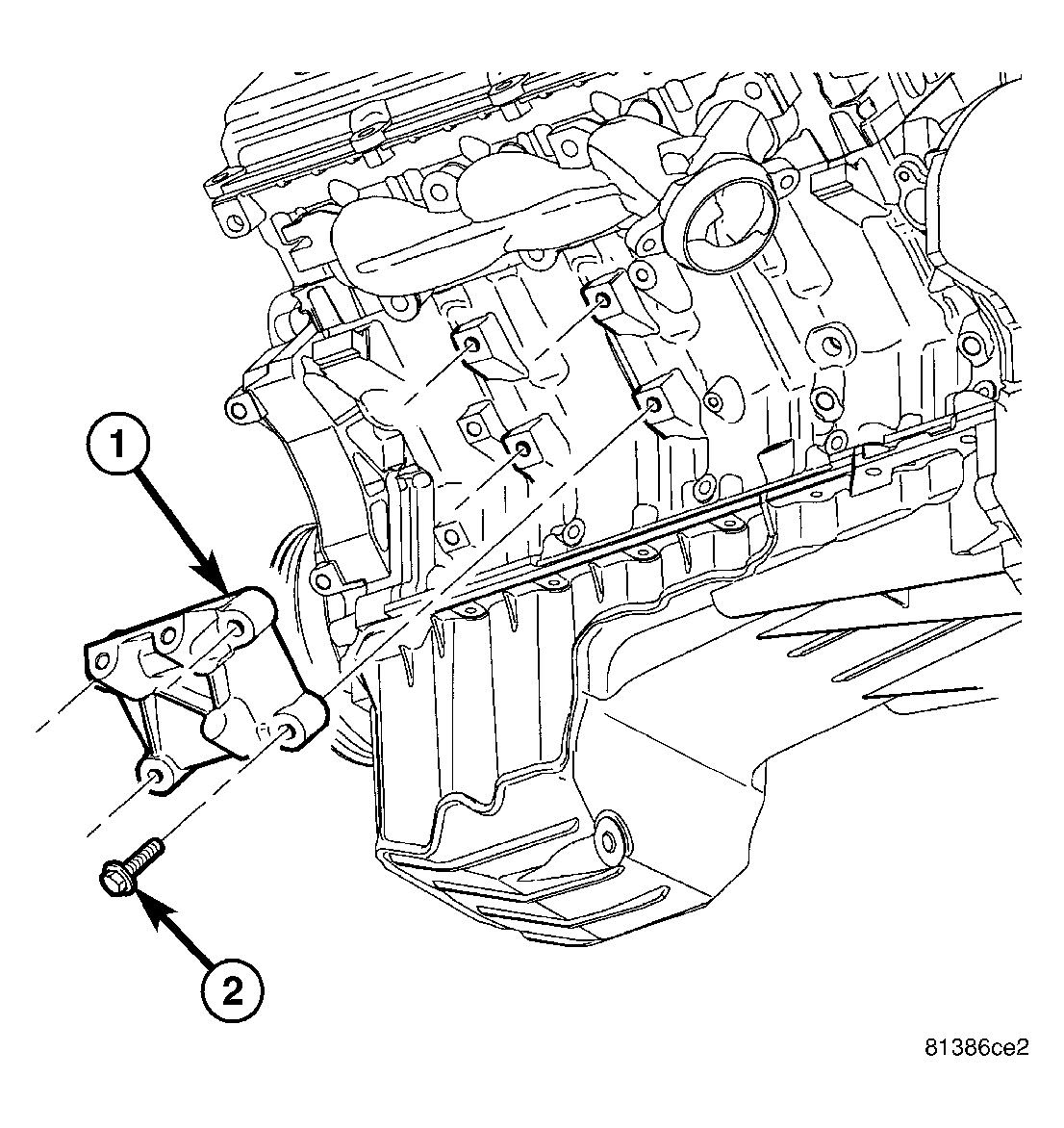

Fig 4: Engine Mount Bracket LH
Courtesy of DAIMLERCHRYSLER CORP.

1 - Engine Mount Bracket

2 - Bolt

Fig 5: Engine Mount Bracket RH
Courtesy of DAIMLERCHRYSLER CORP.

1 - Engine Mount Bracket

2 - Bolt
Remove engine mount brackets (1), if needed.
