Section 39 (Audio System (Service Information)): Module-Antenna: Installation: Sedan
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
.

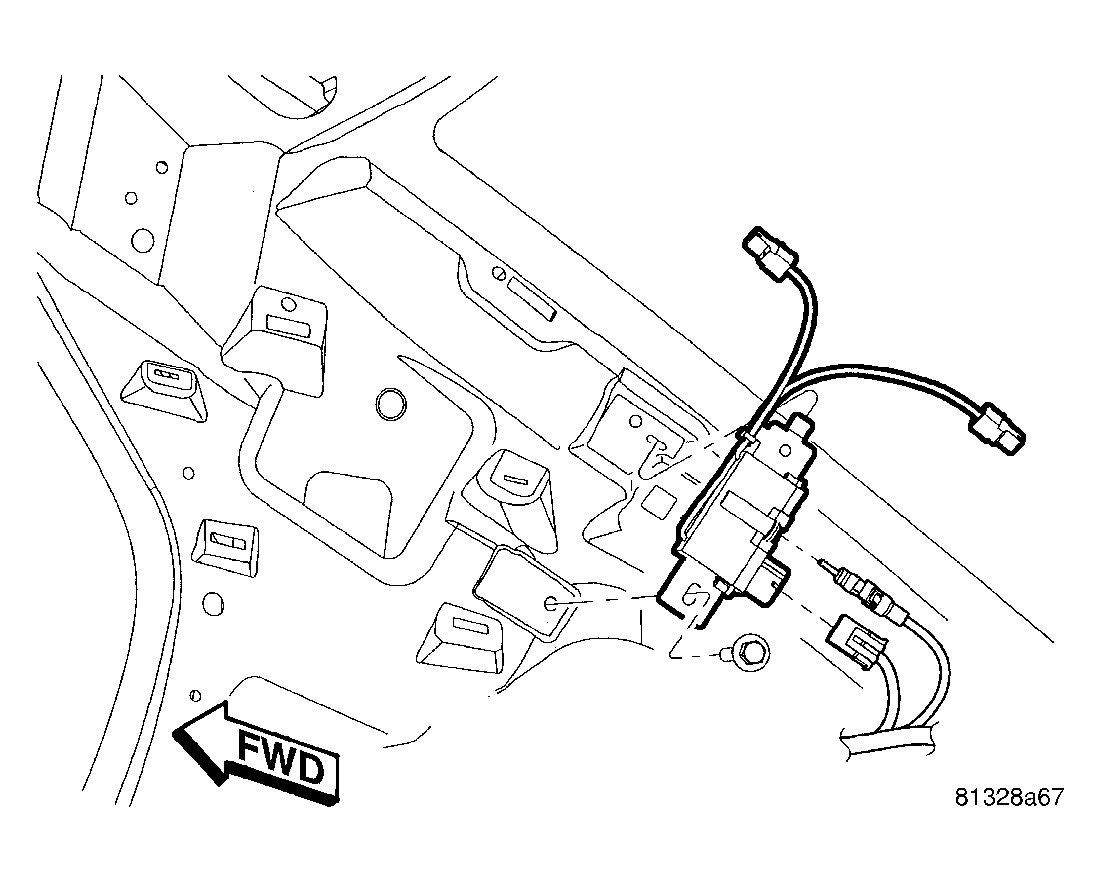

- Position module into place.
- Install and tighten mounting fasteners.
- Connect wire harness connectors and antenna cable to antenna module.
- Install C-pillar upper trim.
- Connect battery negative cable.
