Section 39 (Audio System (Service Information)): Module-Antenna: Installation: Wagon

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

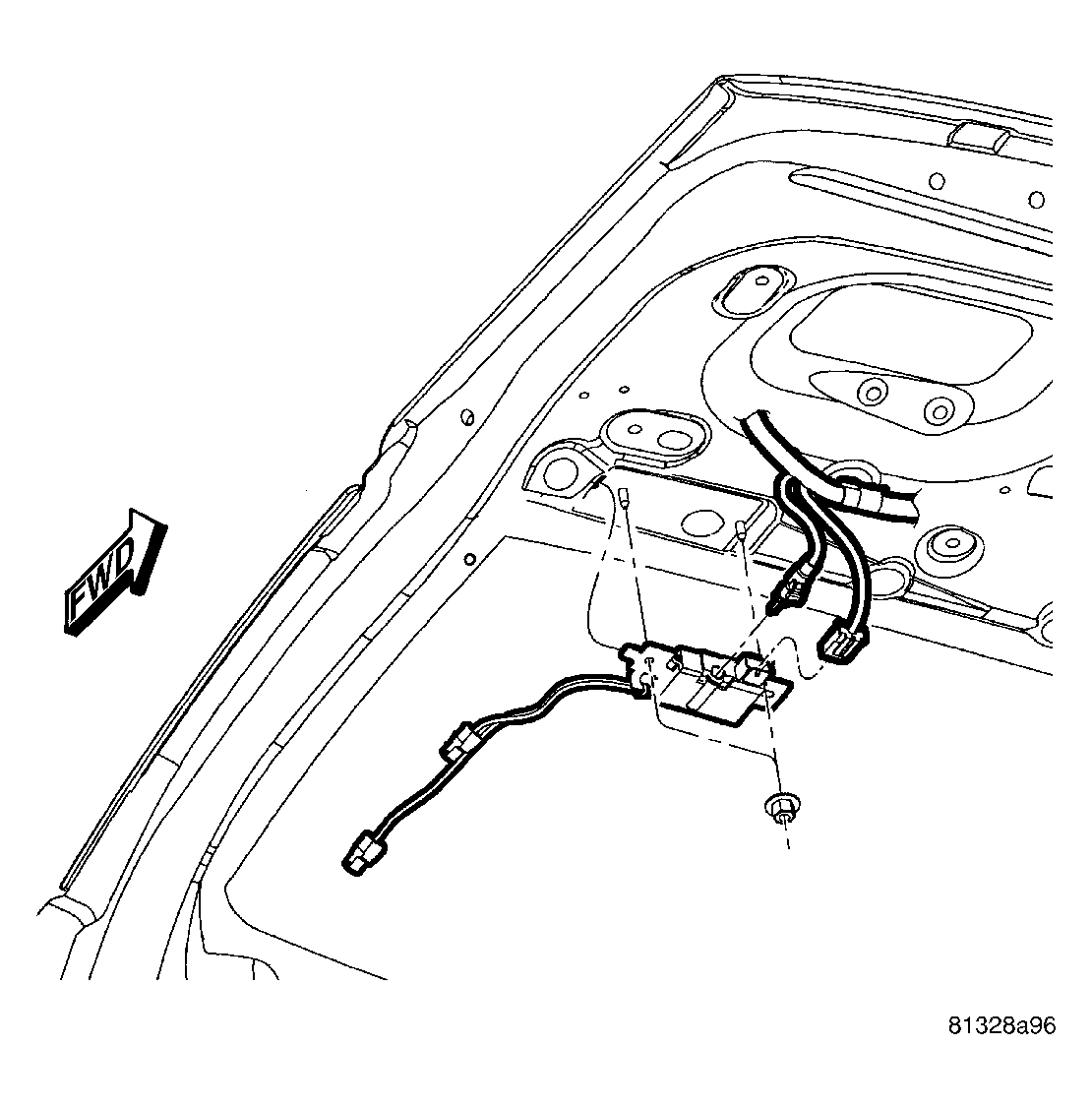

Fig 1: Wire Harness Connectors And Antenna Cable
GC0015564Courtesy of DAIMLERCHRYSLER CORP.
  1. Position module into place.
  2. Install and tighten mounting fasteners.
  3. Connect wire harness connectors and antenna cable to antenna module.
  4. Install the liftgate trim.
  5. Connect the battery negative cable.
