Section 39 (Audio System (Service Information)): Module-Antenna: Removal: Wagon
WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
A battery reconnect procedure must be performed anytime the battery has been disconnected. (Refer to ELECTRICAL/BATTERY SYSTEM - STANDARD PROCEDURE)
.

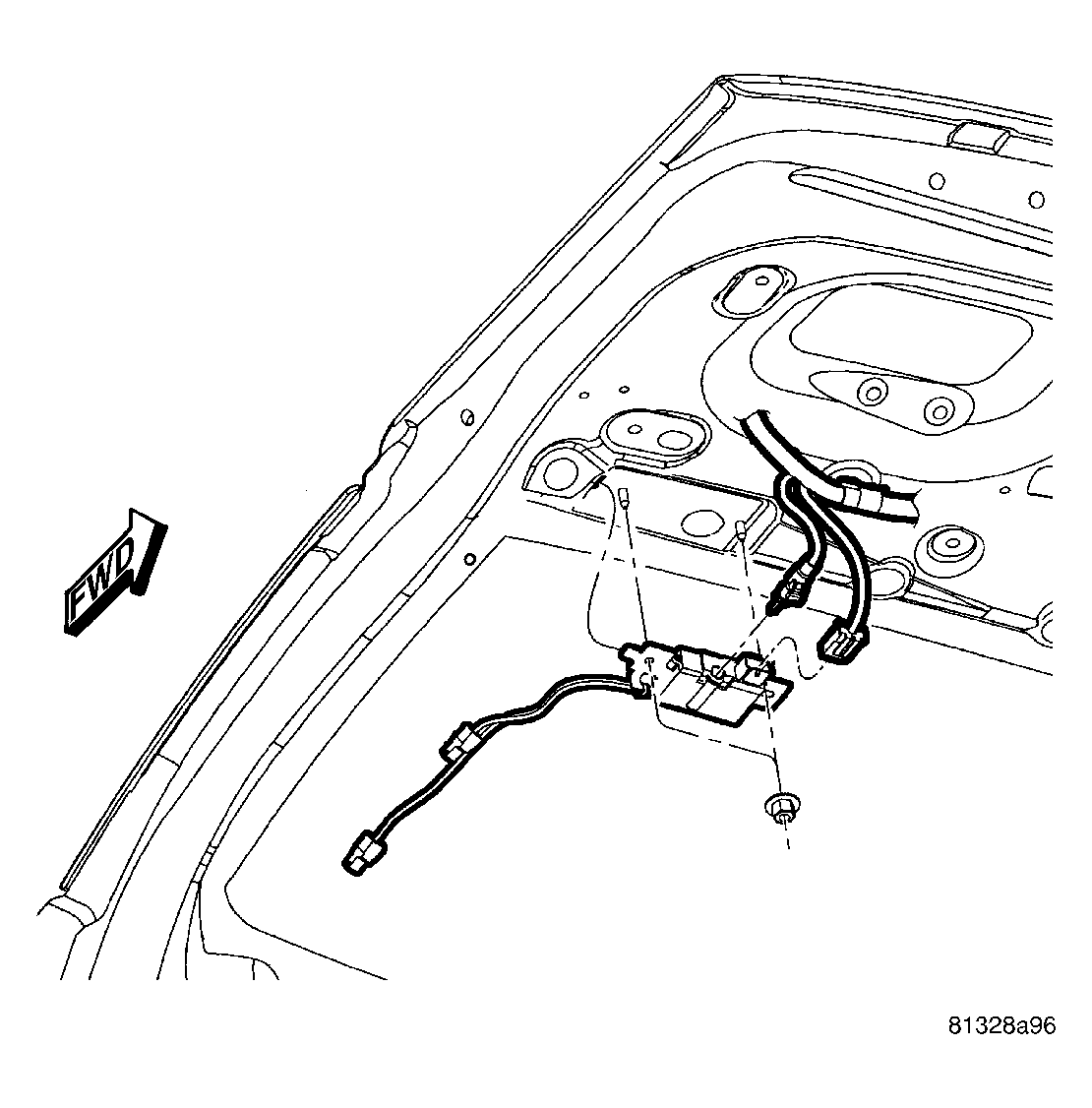

- Disconnect and isolate the battery negative cable.
- Remove the liftgate trim.
- Disconnect wire harness connectors and antenna cable.
- Remove mounting fasteners and antenna module.
