Mounting - Engine Rear: Installation

WARNING: This page is about a different variant/trim than selected.

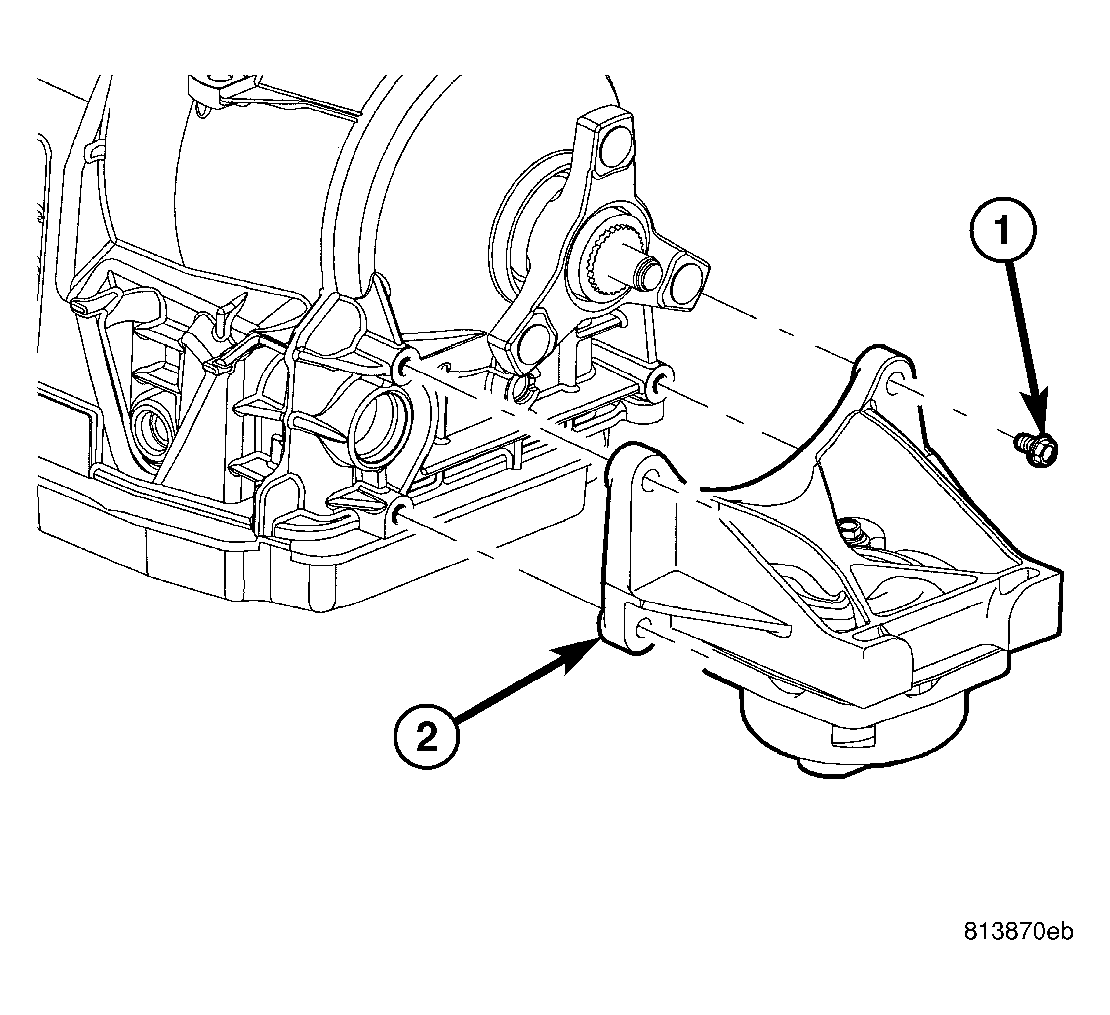

Fig 1: Trans Mount Bracket
GC0015470Courtesy of CHRYSLER LLC
1 - Bolts
2 - Trans Mount Bracket
  1. Install the transmission mount bracket (2), if removed.

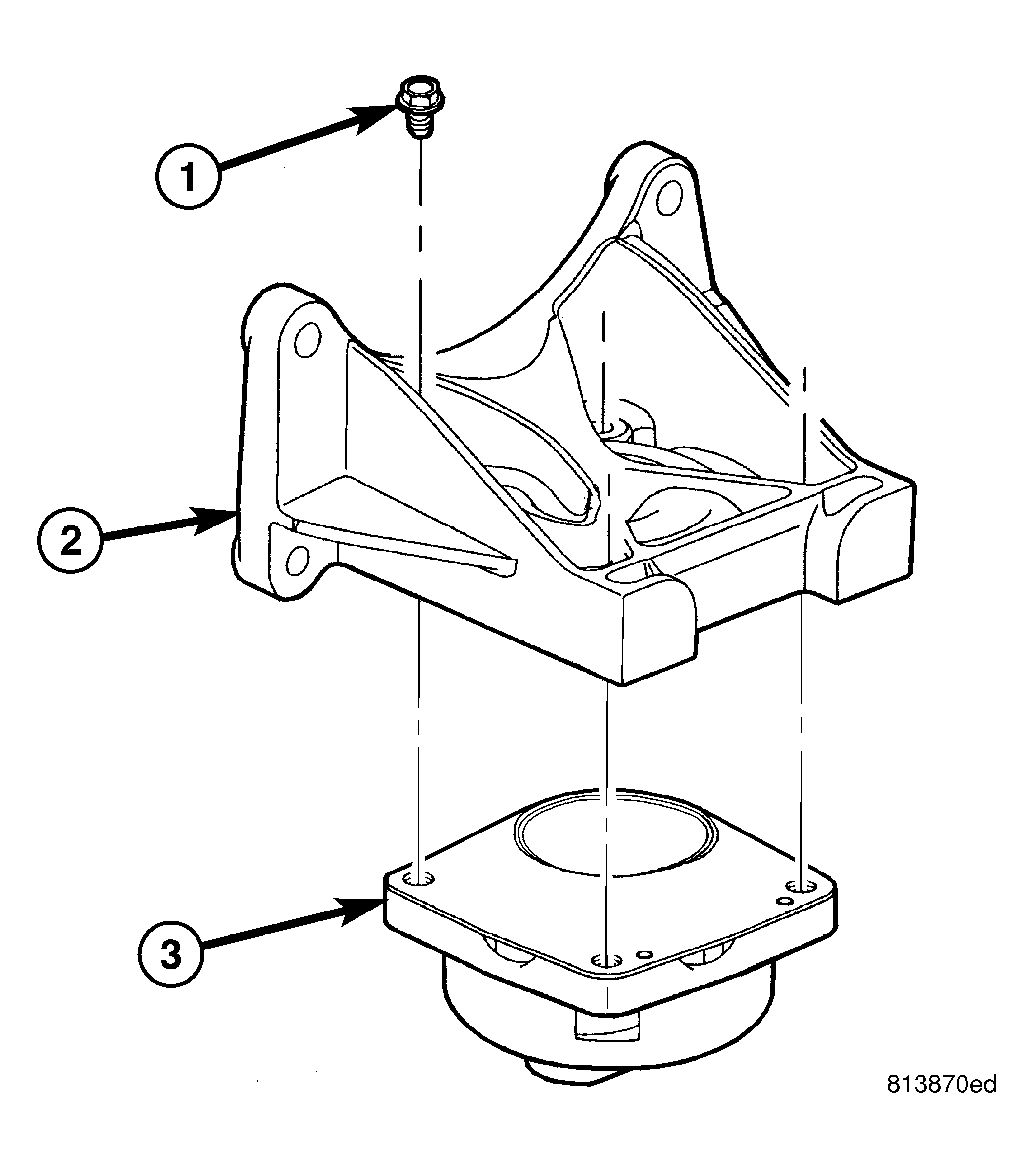

    Fig 2: Transmission Mount
    GC0015471Courtesy of CHRYSLER LLC
    1 - Bolts
    2 - Trans Mount Bracket
    3 - Trans Mount
  2. Position the transmission mount (3) on the transmission mount bracket (2). Install the bolts (1) that attach the transmission mount (3) to the bracket (2).
  3. Torque the bolts to N.m ( ft.lbs.) torque.

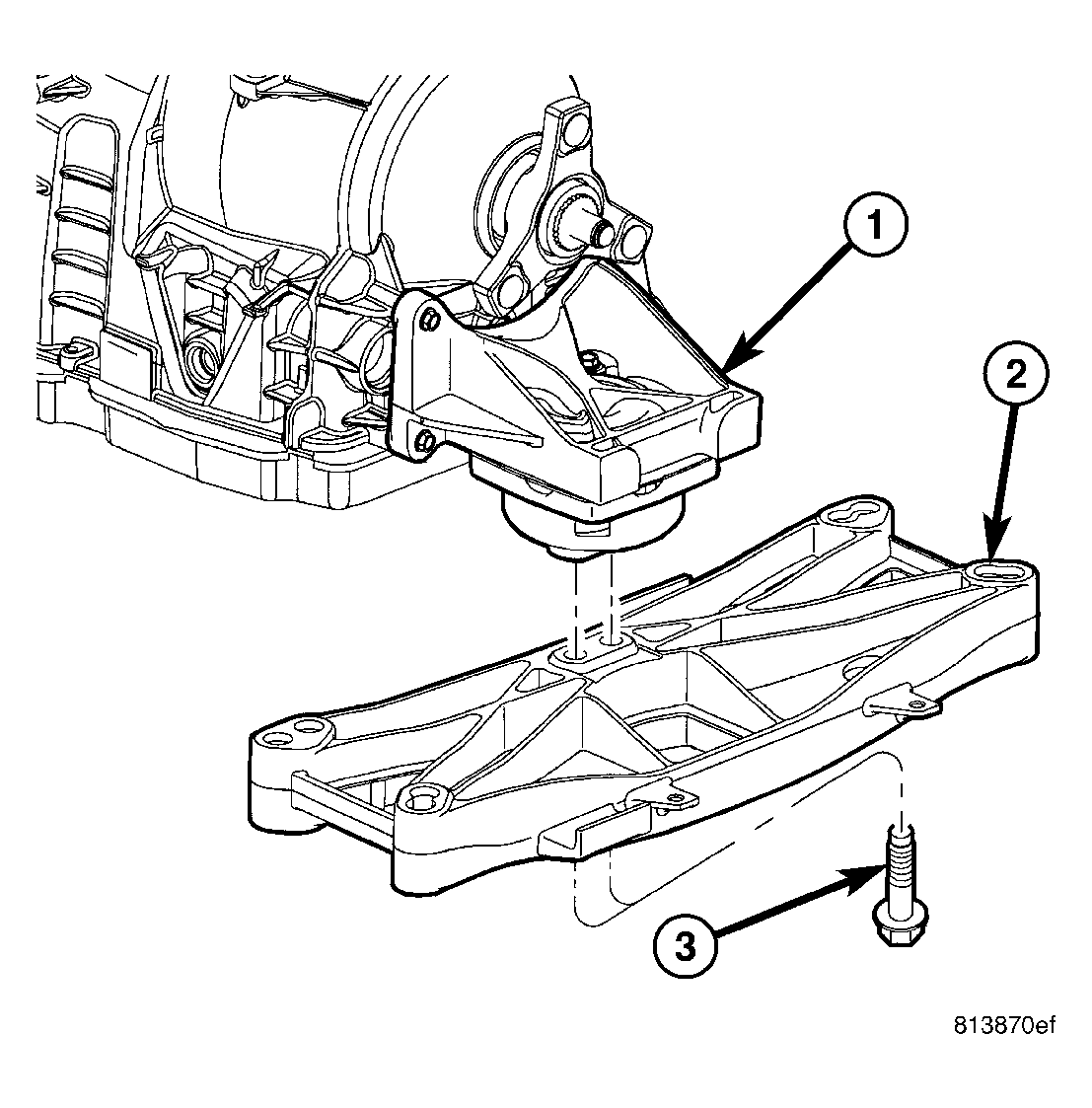

    Fig 3: Crossmember
    GC0015472Courtesy of CHRYSLER LLC
    1 - Trans Mount Bracket
    2 - Crossmember
    3 - Bolts
  4. Install the crossmember (2).
