Engine Block: FLEXPLATE: Removal

WARNING: This page is about a different variant/trim than selected.

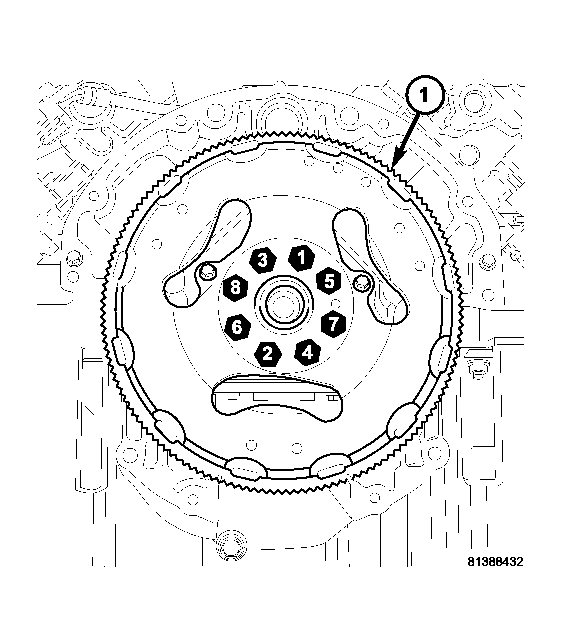

Fig 1: Flex Plate Tightening Sequence
GC0040421Courtesy of CHRYSLER LLC
1 - Flexplate
  1. Remove the transmission. Refer to REMOVAL .
  2. Remove the bolts and flexplate (1).
