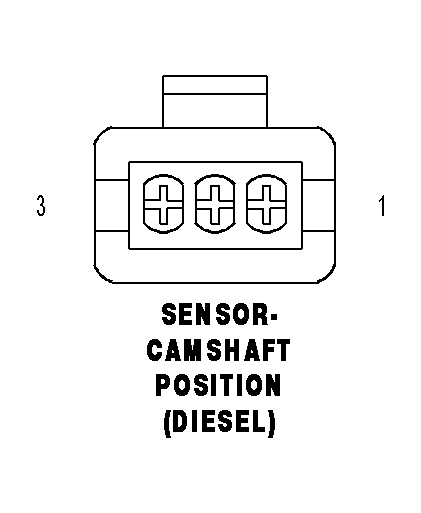

Camshaft Position Sensor (Diesel) Connector End View
SENSOR-CAMSHAFT POSITION (DIESEL) - 3 WAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 1 |
K944 20BR/DG |
CAMSHAFT POSITION SENSOR GROUND |
| 2 |
K44 20YL/GY |
CAMSHAFT POSITION SENSOR SIGNAL |
| 3 |
K844 20RD/VT |
CAMSHAFT POSITION SENSOR 5 VOLT SUPPLY |
