Power Outlet-Rear

Component ID: 292
Component : POWER OUTLET-REAR

Connector:
Name : POWER OUTLET-REAR
Color : BLACK
# of pins : 3
Qualifier : (LX49)




Pin Description Circuit
1 FUSED B(+) A105 16DB/RD
2 - -
3 GROUND Z914 16BK/GY

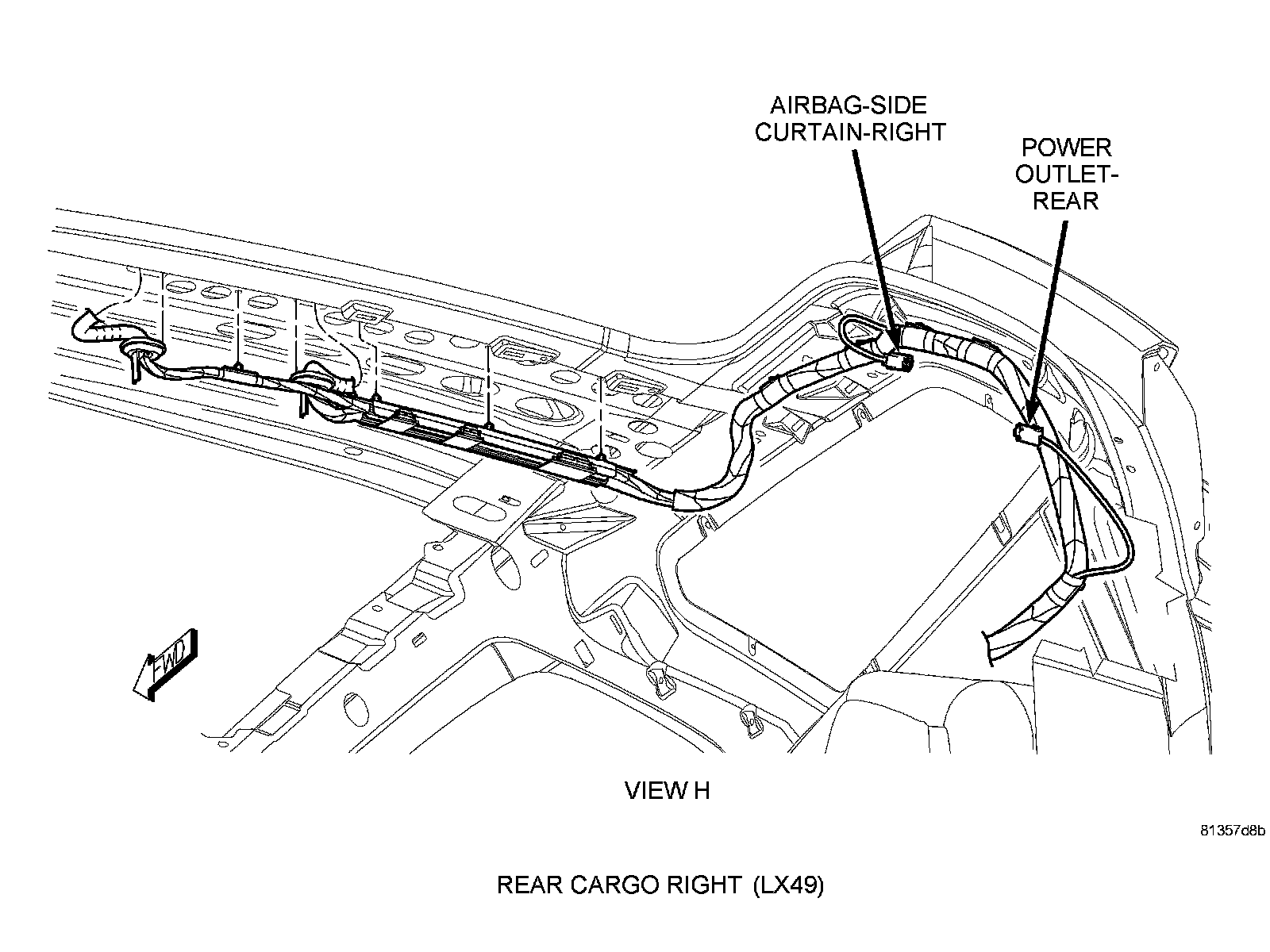

Component Location - 77




Component Location - 68
