Sensor-Wheel Speed-Right Front




Component ID: 543
Component : SENSOR-WHEEL SPEED-RIGHT FRONT

Connector:
Name : SENSOR-WHEEL SPEED-RIGHT FRONT
Color : BLACK
# of pins : 4
Qualifier : (EXCEPT ABS)




Pin Description Circuit
1 - -
2 - -
3 RIGHT FRONT WHEEL SPEED SENSOR SUPPLY B7 20DG/VT
4 RIGHT FRONT WHEEL SPEED SENSOR SIGNAL B6 20DG/WT

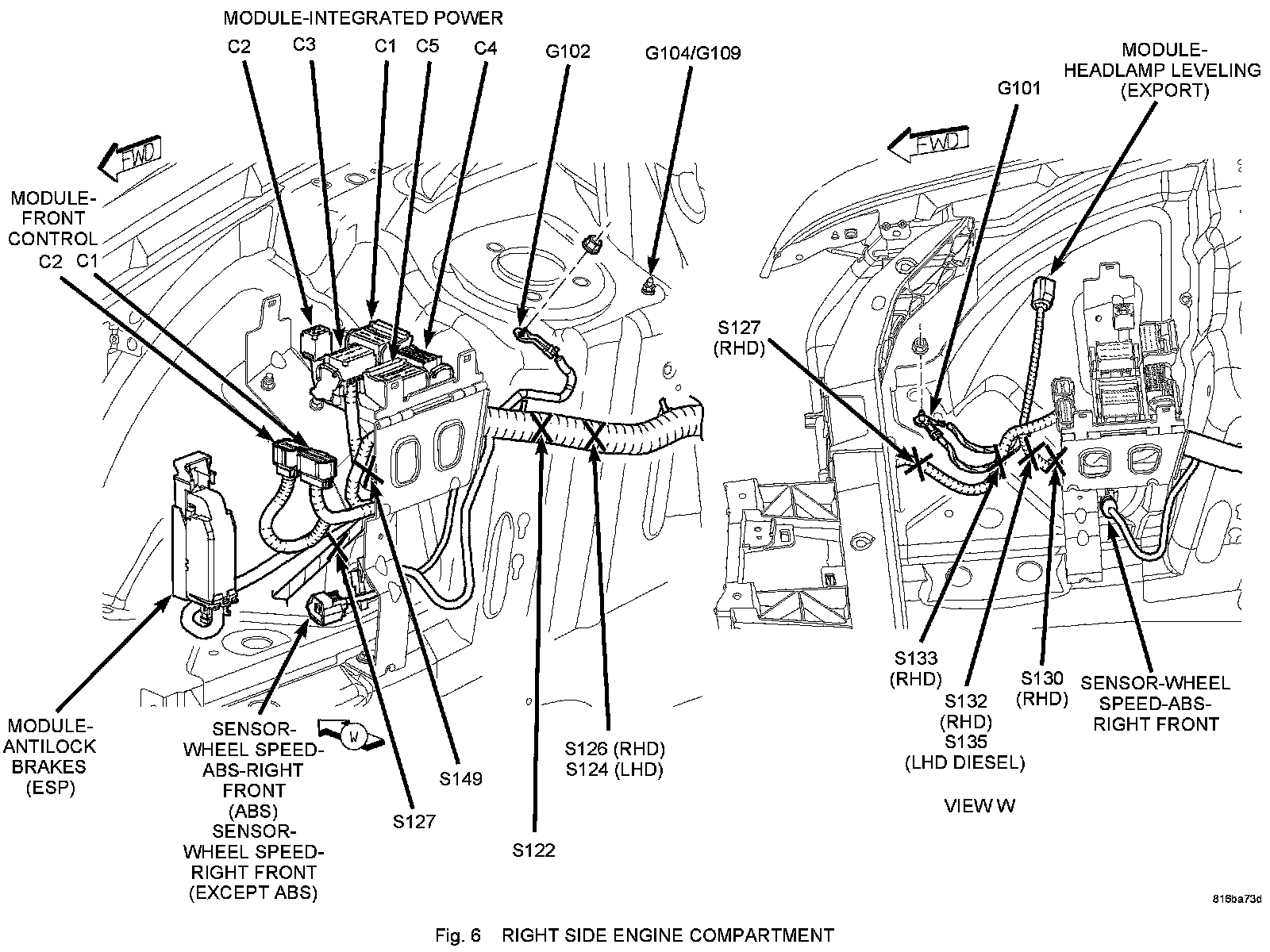

Component Location - 6

Fig. 6:
