Installation

INSTALLATION

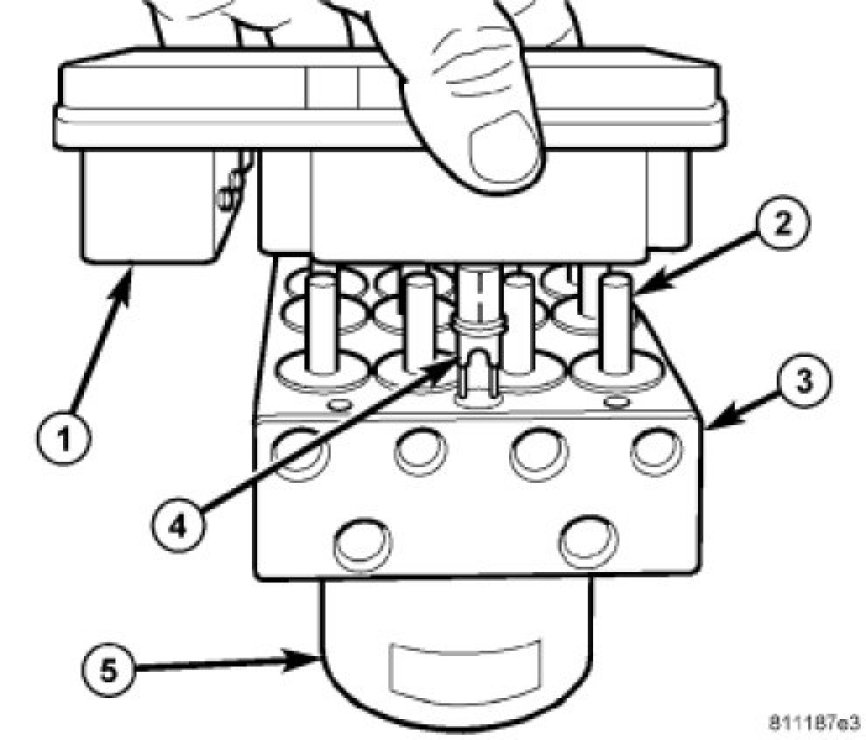

1. Align ABM solenoids and pump/motor wiring connector (4) with HCU valves (2) and connector passage. Slide ABM (1) onto HCU (3).

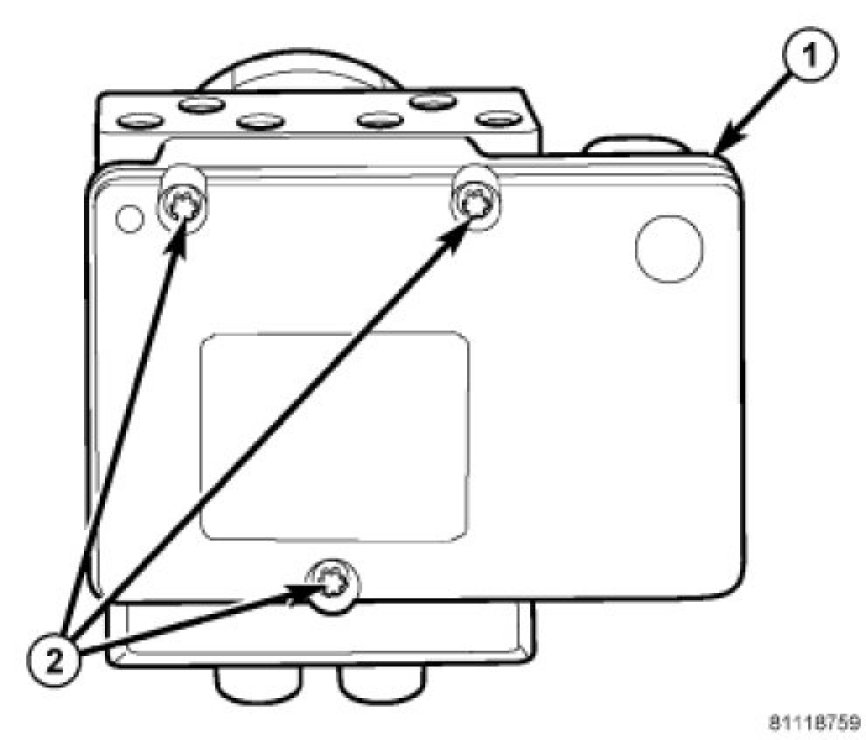

2. Install three screws (2) attaching ABM (1) to HCU. Tighten screws to 2 Nm (17 in. lbs.) torque.

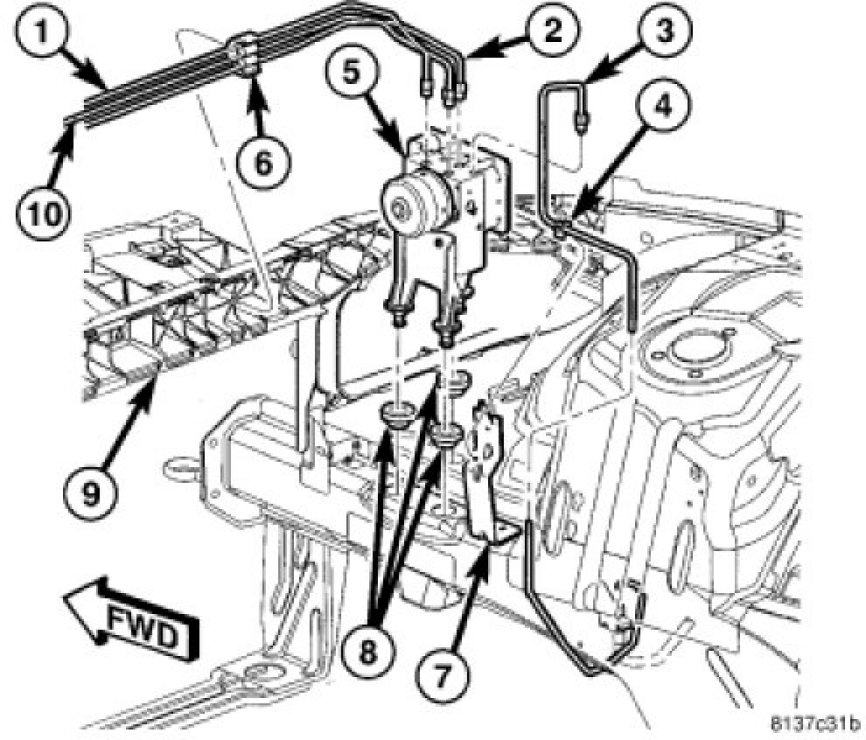

3. Position assembly (5) above mounting grommets (8) and press mounting bracket into place.

4. Clip brake tube (3) to routing clip (4) below Fuse And Relay Center.

5. Clip brake tubes (1, 2 and 10) to two routing clips (6) along upper radiator support.

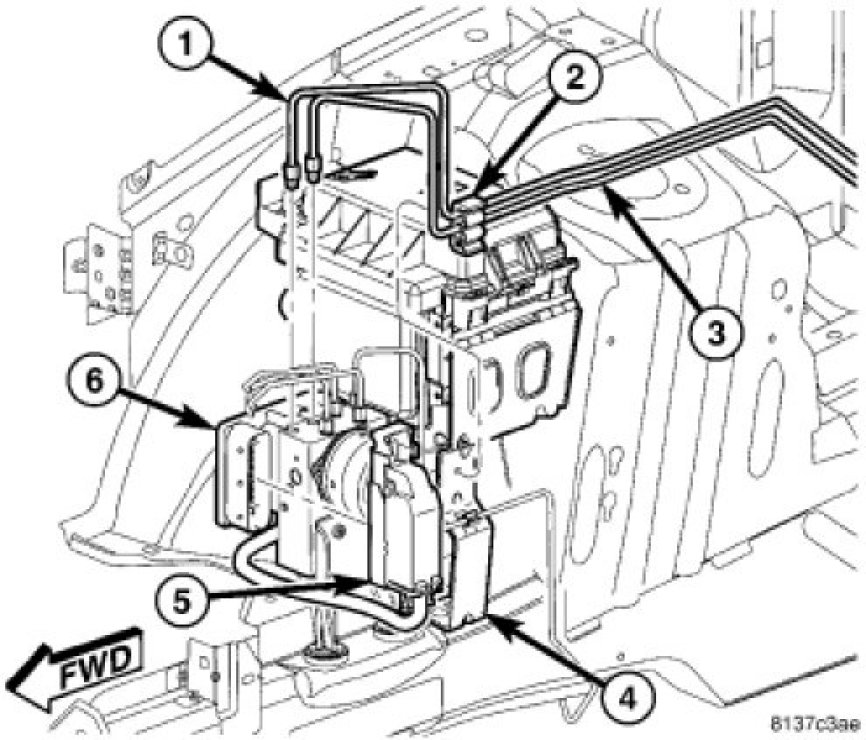

6. Connect 47-way wiring connector (5) at ABM (6).

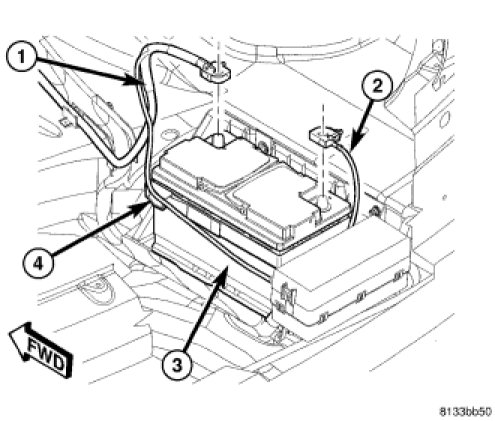

7. Connect battery negative cable (2) to battery post. It is important that this is performed properly.

8. Perform Diagnostic Verification Test and clear any faults.
