Removal






REMOVAL





NOTE: A battery reconnect procedure must be performed anytime the battery has been disconnected.

1. Disconnect and isolate the battery negative cable.

2. Remove the door trim panel.

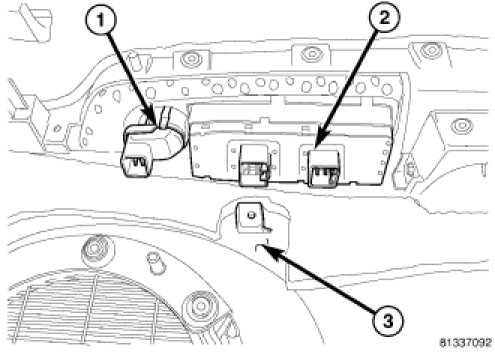

3. Using a flat bladed tool, remove the window/lock switch (2) from the door trim panel.
