Installation

INSTALLATION

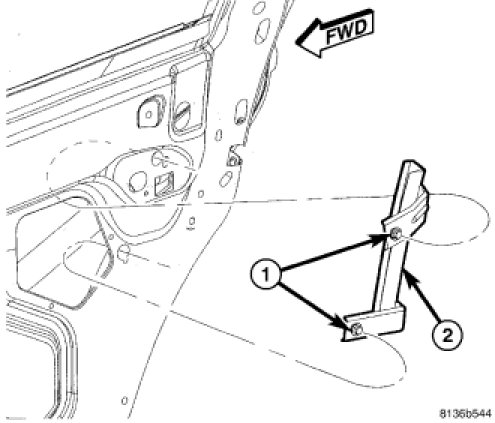

1. Position the rear door glass channel and bracket (2) into the interior of the rear door.

2. Engage the two screws (1) into the keyed holes near the back of the inner door panel.

3. Tighten the two screws that secure the channel and bracket to the inside of the rear door. Tighten the screws to 10 Nm (90 in. lbs.).

4. Reinstall the watershield onto the inside of the rear door.

5. Reinstall the trim panel onto the inside of the rear door.
