Crankshaft Position Sensor: Locations

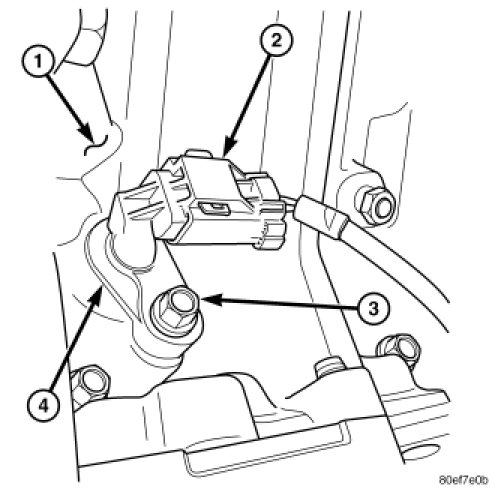

The Crankshaft Position (CKP) sensor (4) is located at the right-rear side of the engine cylinder block (1).
