Front Cross-Member: Service and Repair

CROSSMEMBER-UNDERBODY

REMOVAL




1. Raise and support the vehicle.

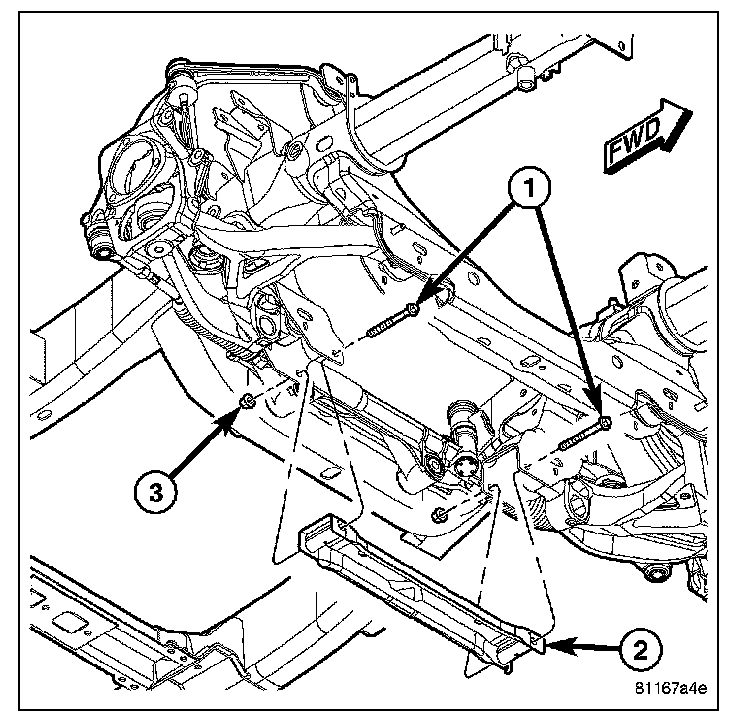

2. Remove the bolts (1) and nuts (3) and remove the crossmember (2).

INSTALLATION

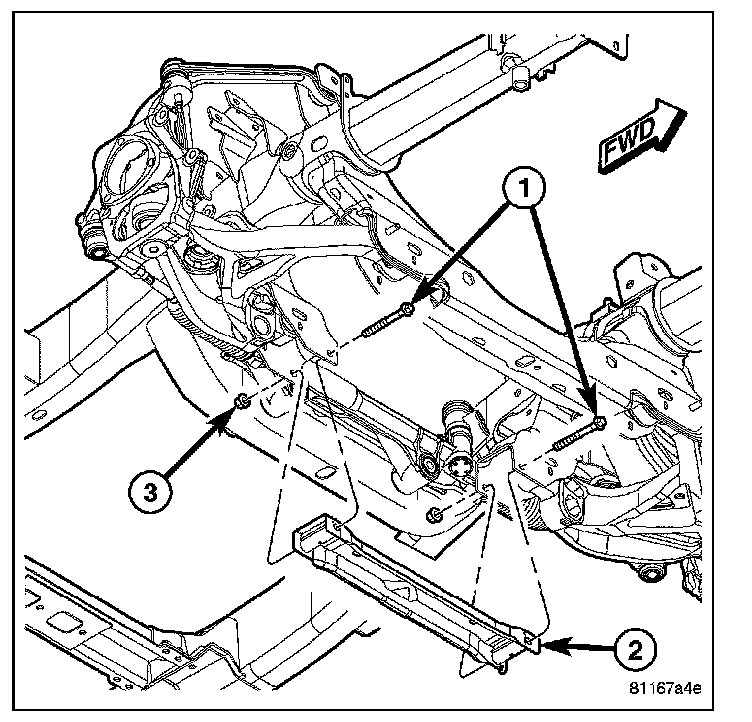

1. Install the crossmember (2).
2. Install the bolts (1) and nuts (3).
3. Tighten the bolts and nuts to 102 N.m (75 ft.lbs.).
