Installation

INSTALLATION





1. Position servo (2) to mounting bracket.

2. Align hole in cable connector with hole in servo pin. Install cable-to-servo retaining clip (3)..

3. Insert servo mounting studs through holes in servo mounting bracket.

4. Install two servo-to-mounting bracket nuts (1) and tighten to 30 in. lbs. (4 Nm).

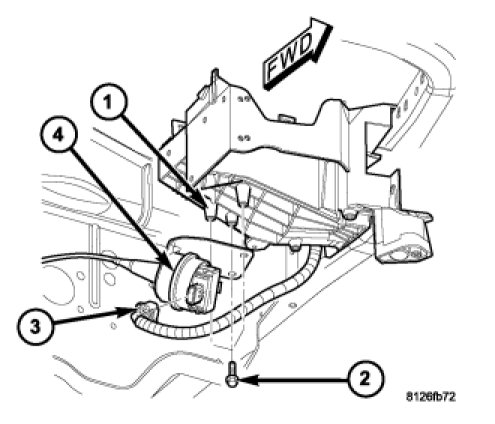

5. Position servo assembly (4) to correct mounting lugs on bottom of PDC (1) and install 3 screws. Tighten 3 screws to 30 in. lbs. (4 Nm).

6. Connect vacuum line at servo.

7. Connect electrical connector at servo.

8. Connect servo cable to throttle body.

9. Connect negative battery cable to battery.

10. Before starting engine, operate accelerator pedal to check for any binding.
