Alternator
Component ID: 117
Component : GENERATOR
Connector:
Name : GENERATOR
Color :
# of pins : 2
Pin Description Circuit
1 GEN FIELD CONTROL K20 18BR/GY
2 GEN SENSE A803 18GY
Component Location - 12
Component Location - 16

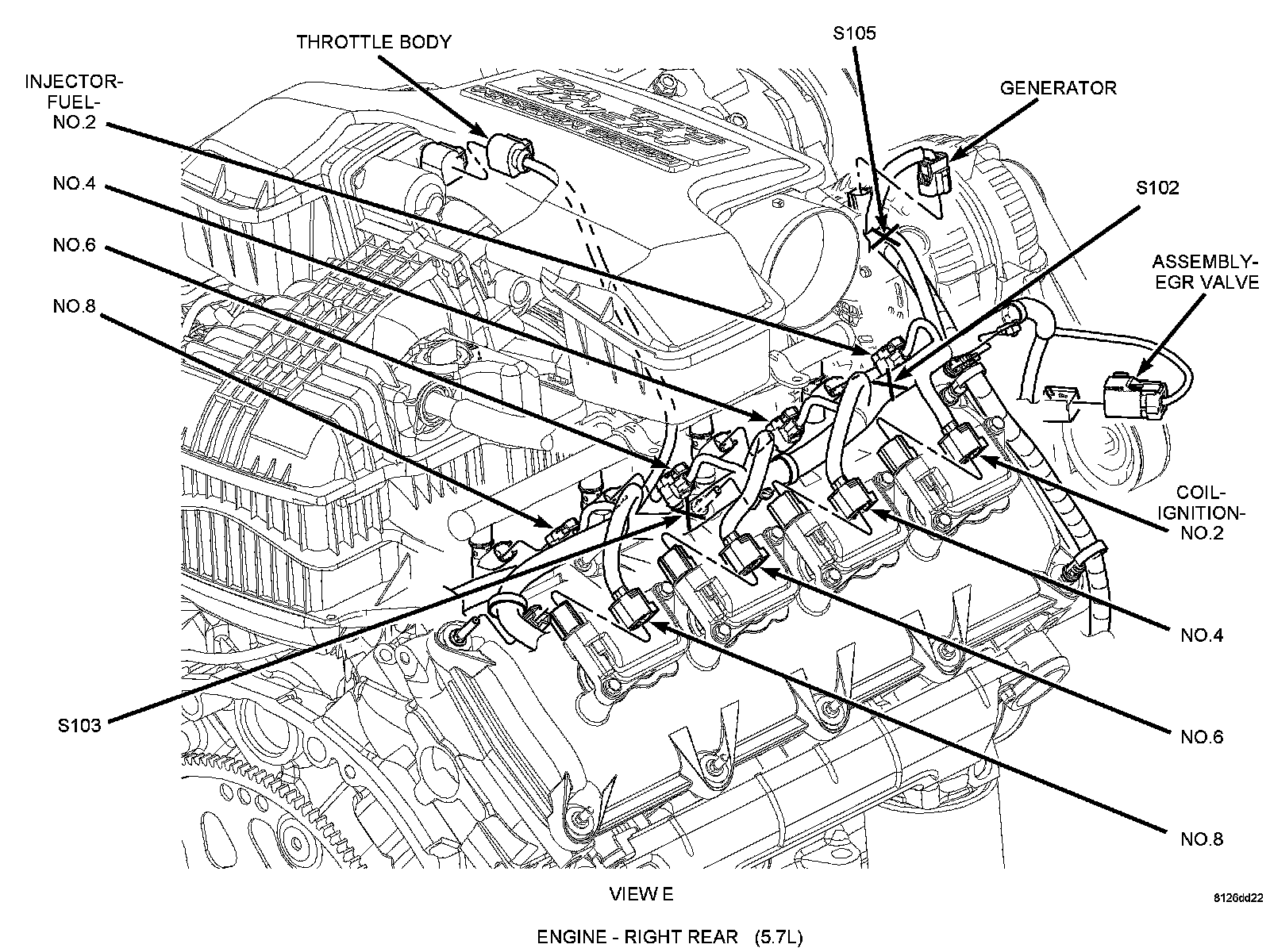

Fig. 16:
Component Location - 17
Component Location - 22
Component Location - 23
Component Location - 7
Connector:
Name : GENERATOR-EYELET
Color :
# of pins : 1
Pin Description Circuit
1 B(+) A1 4RD
Component Location - 12
Component Location - 16

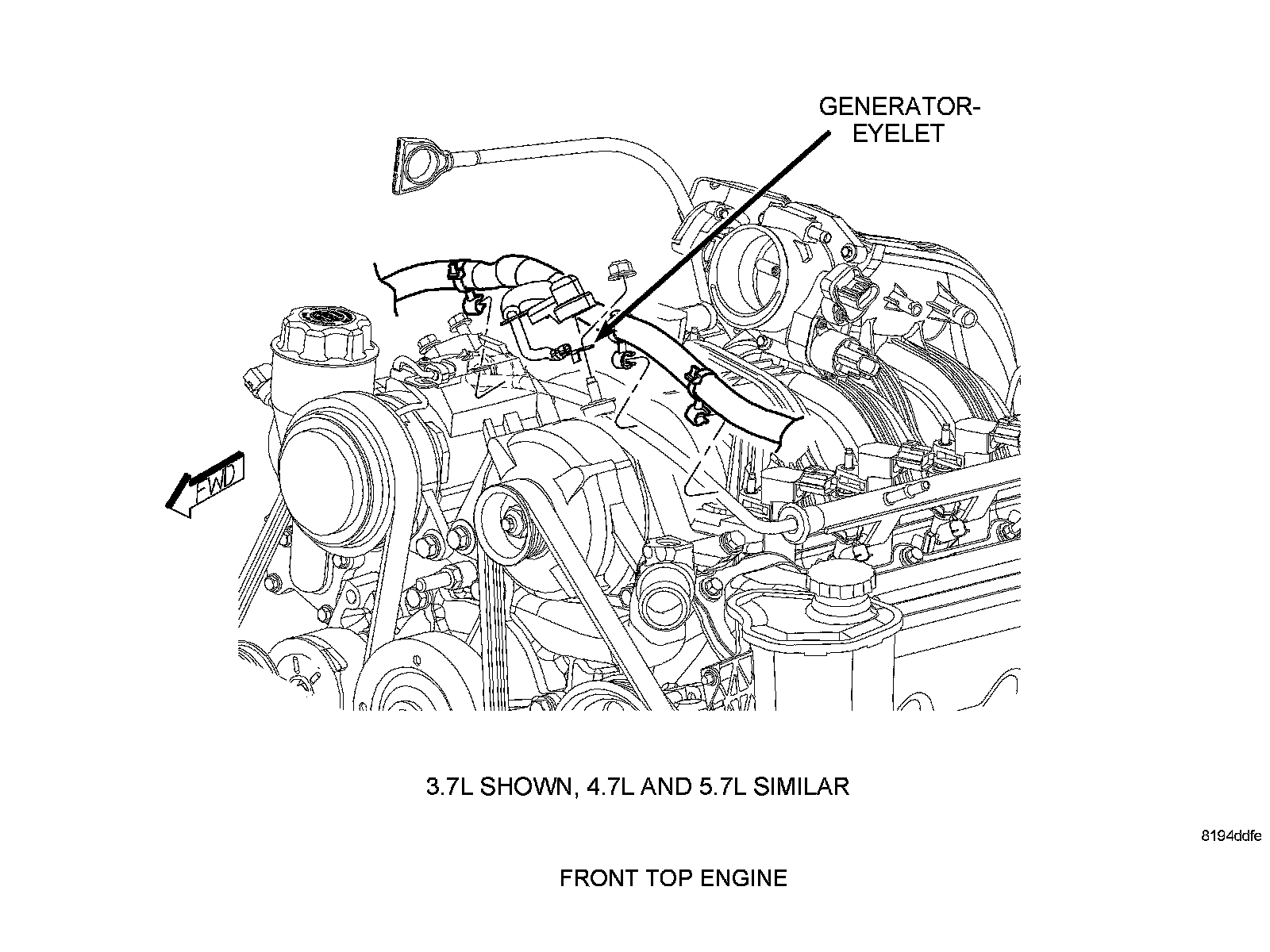

Fig. 16:
Component Location - 17
Component Location - 22
Component Location - 23
Component Location - 7
