Combination Switch

Component ID: 435
Component : SWITCH-MULTIFUNCTION

Connector:
Name : SWITCH-MULTIFUNCTION
Color : BLACK
# of pins : 4




Pin Description Circuit
1 HIGH BEAM/FRONT WASHER SWITCH MUX G194 20VT/RD
2 SWITCH MUX RETURN G902 20VT/BR
3 TURN SIGNAL INPUT MUX L12 20WT/DB
4 FRONT WIPER SWITCH MUX W52 20BR/YL

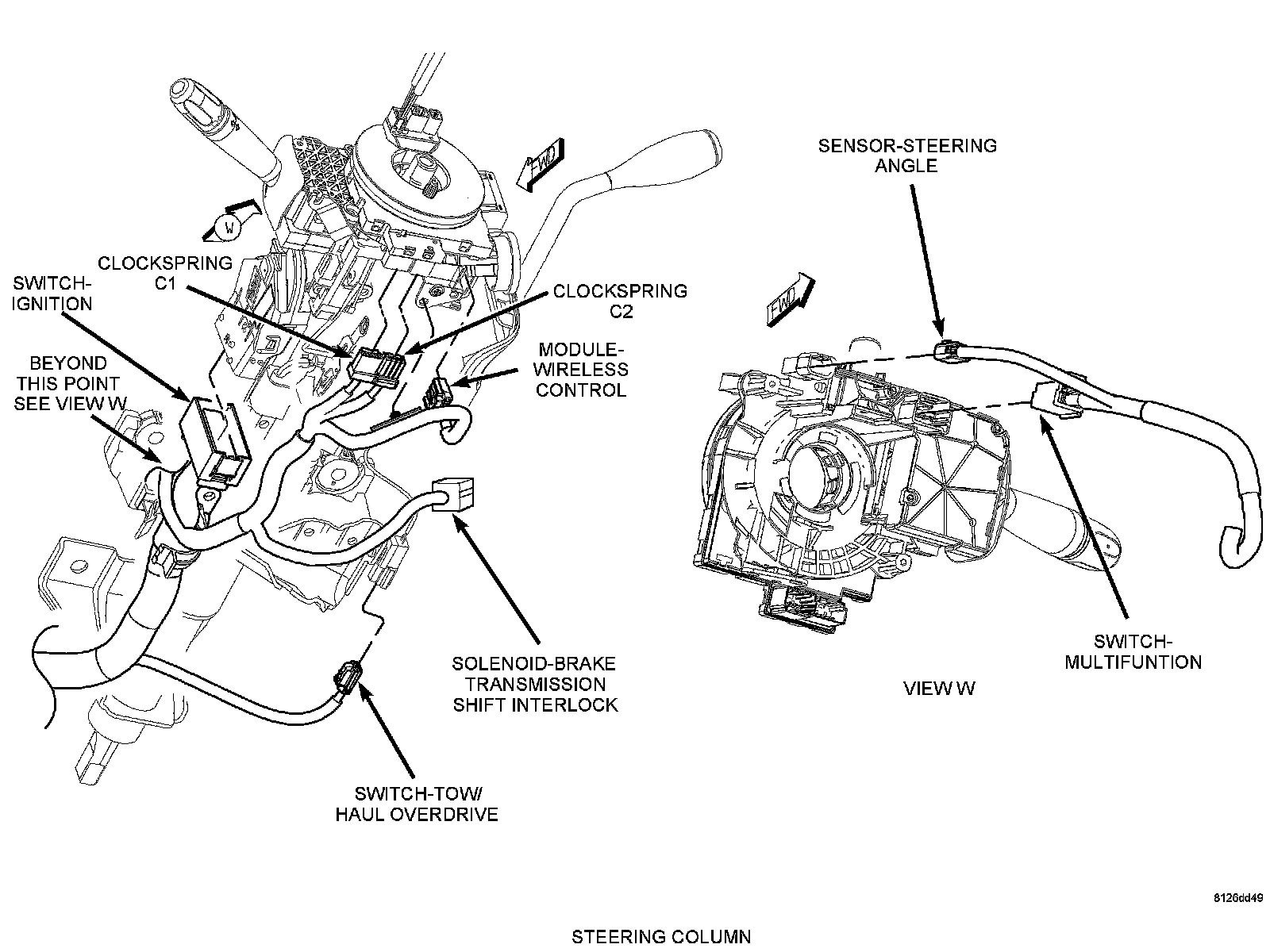

Component Location - 32
