Sensor-Output Speed




Component ID: 375
Component : SENSOR-OUTPUT SPEED

Connector:
Name : SENSOR-OUTPUT SPEED
Color : BLACK
# of pins : 2




Pin Description Circuit
1 OUTPUT SPEED SIGNAL T14 20DG/BR
2 SPEED SENSOR GROUND T13 20DG/VT

Component Location - 14




Component Location - 19

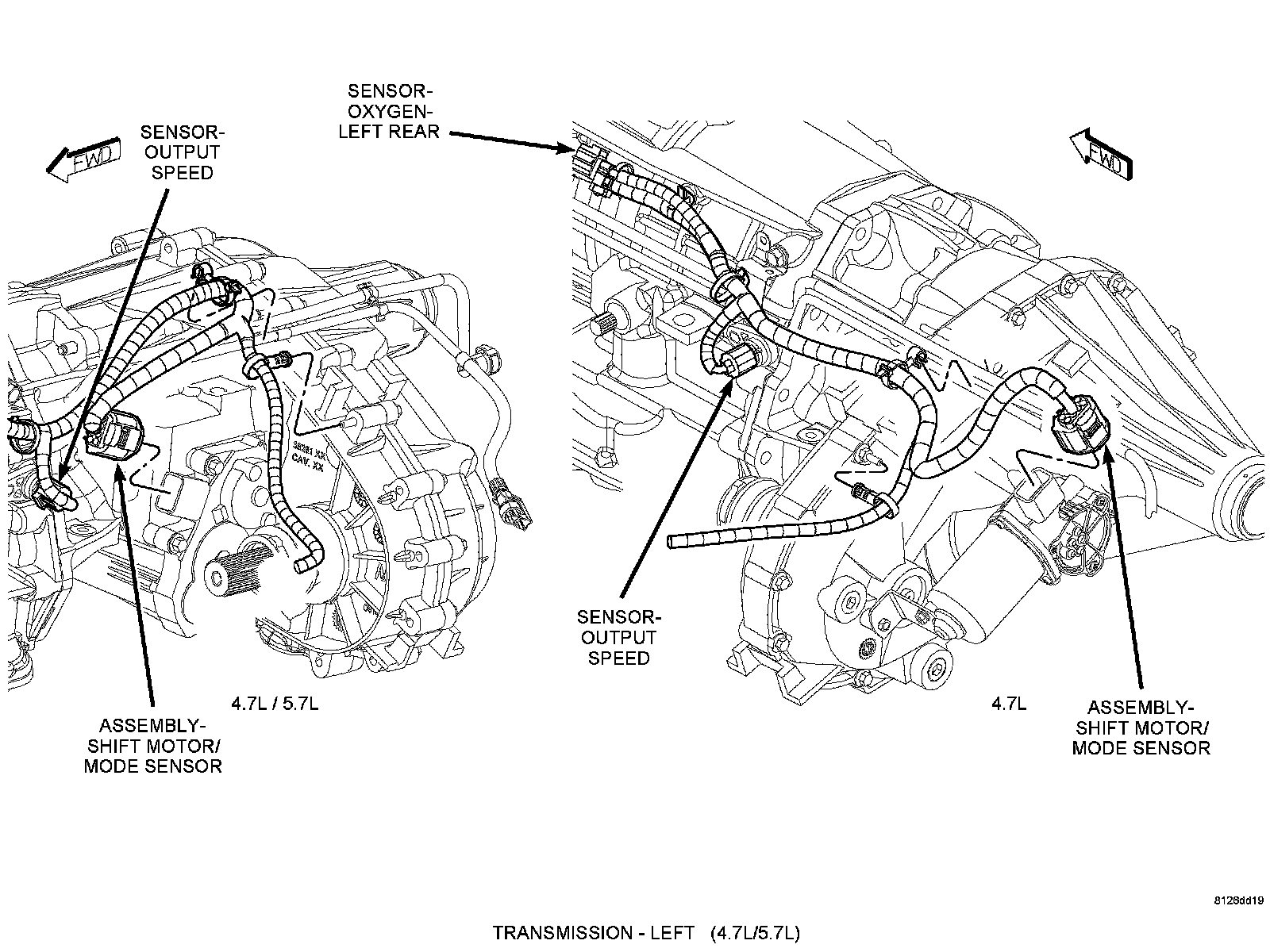

Fig. 19:





Component Location - 21




Component Location - 26
