Installation

INSTALLATION






NOTE: Refer to the fuse and relay map on the inside of the PDC cover for A/C clutch relay location.

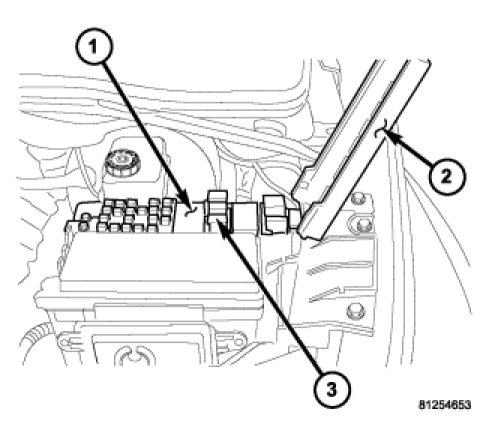

1. Position the A/C clutch relay (3) into the proper receptacle of the PDC (1).

2. Align the A/C clutch relay terminals with the terminal cavities in the PDC receptacle and push down firmly on the relay until the terminals are fully seated.

3. Close the PDC cover (2).

4. Reconnect the negative battery cable.
