Removal

REMOVAL




1. Disconnect and isolate the battery negative cable.

2. Remove the cowl trim cover.

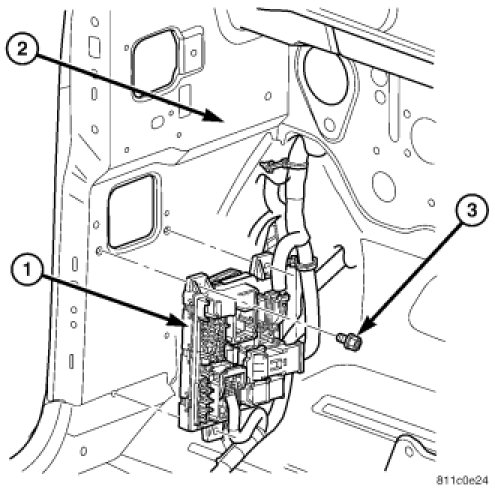

3. Remove the mounting fasteners (3).

4. Disconnect the electrical harness connectors and remove Junction Block (1).

5. Transfer components as necessary.
