Installation






INSTALLATION

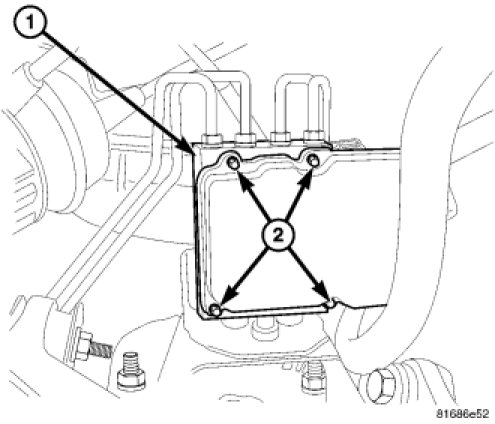

1. Position the module on the HCU on ESP vehicles be careful not to damage the pressure sensor or not to touch the sensor terminals on the HCU side or the contact pads on the ABM side when installing the ABM.

2. Install the mounting screws (2) and tighten to 2.5 Nm (22 in. lbs).

3. Perform the ABS verification test with a scan tool.
