Installation

INSTALLATION

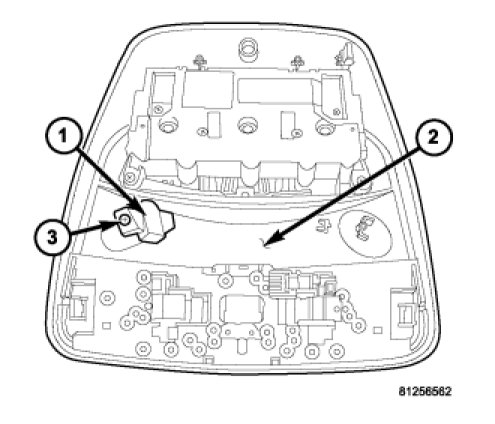

NOTE: Typical overhead console shown. Infrared sensor location may vary.

1. Position the infrared sensor (1) onto the overhead console (2).

2. Install the screw (3) that secures the infrared sensor to the overhead console. Tighten the screw to 2 Nm (17 in. lbs).

3. Install the overhead console.

4. Reconnect the negative battery cable.
