Installation

INSTALLATION




1. Position a new metal gasket between cylinder head (1) and valve assembly (3).

2. Install two mounting bolts (2) and tighten to 20 ft.lbs. (27 Nm).




3. Clean EGR tube where it joins EGR valve.

4. Position new gasket between EGR tube flange and EGR valve assembly.

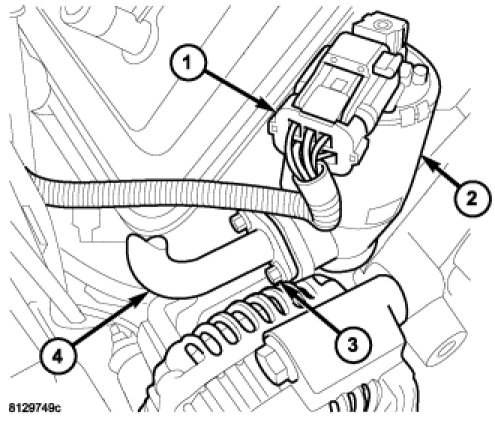

5. Install two bolts (3) connecting EGR tube (4) to valve assembly (2). Tighten bolts to 20 ft.lbs. (27 Nm).

6. Connect electrical connector (1) to EGR solenoid (2).
