DTC 1703-00: Key Fob Invalid: Notes

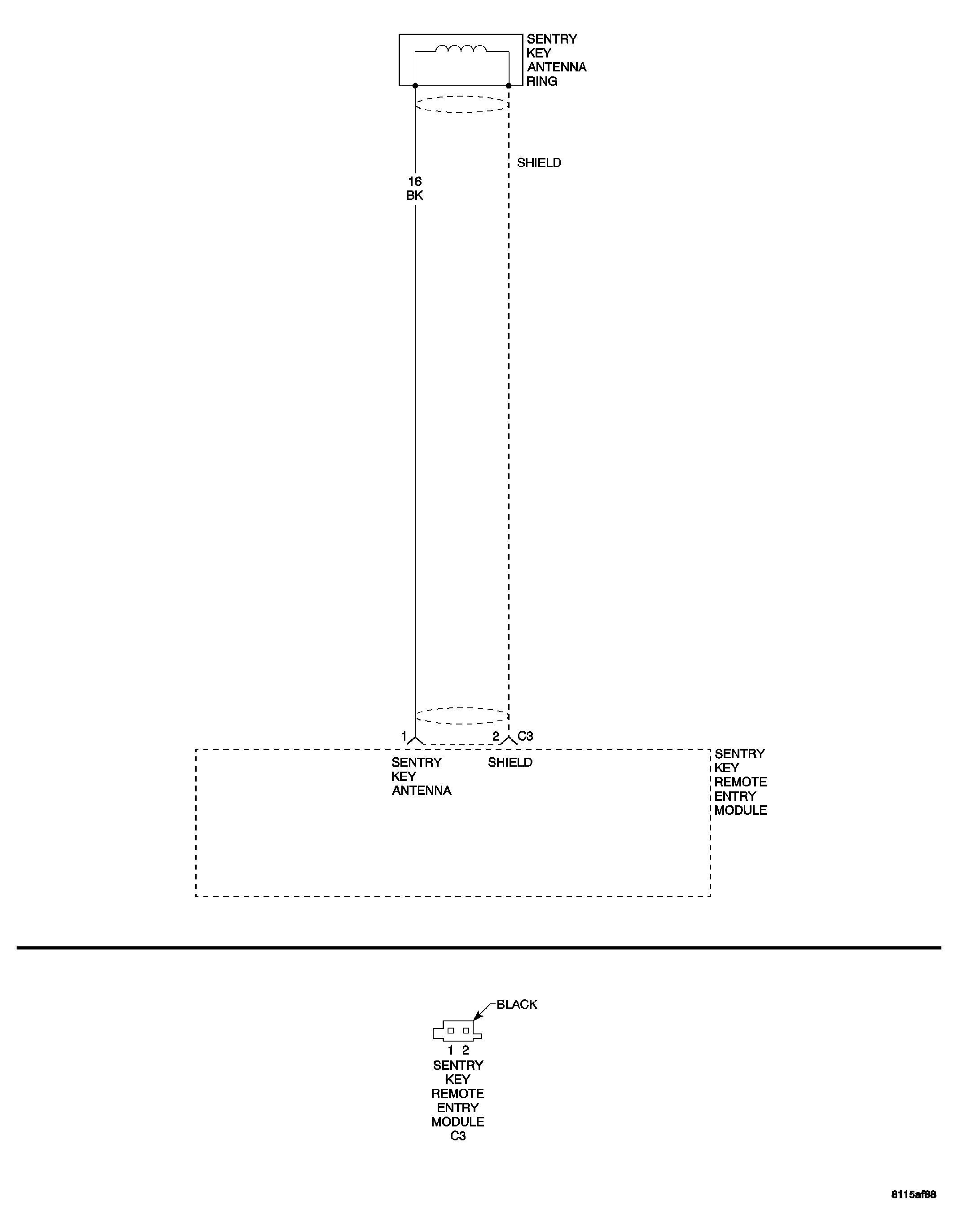

Fig 1: Sentry Key Antenna Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored: Ignition on.
2. Set Condition: The Sentry Key Remote Entry Module (SKREEM) detects an ignition key micro-chip malfunction.

For a complete Sentry Key Remote Entry (SKREEM) Circuit Diagram, see SCHEMATICS AND DIAGRAMS .
