DTC 1725-00: Alarm Triggered By Tow-Away Protection: Notes

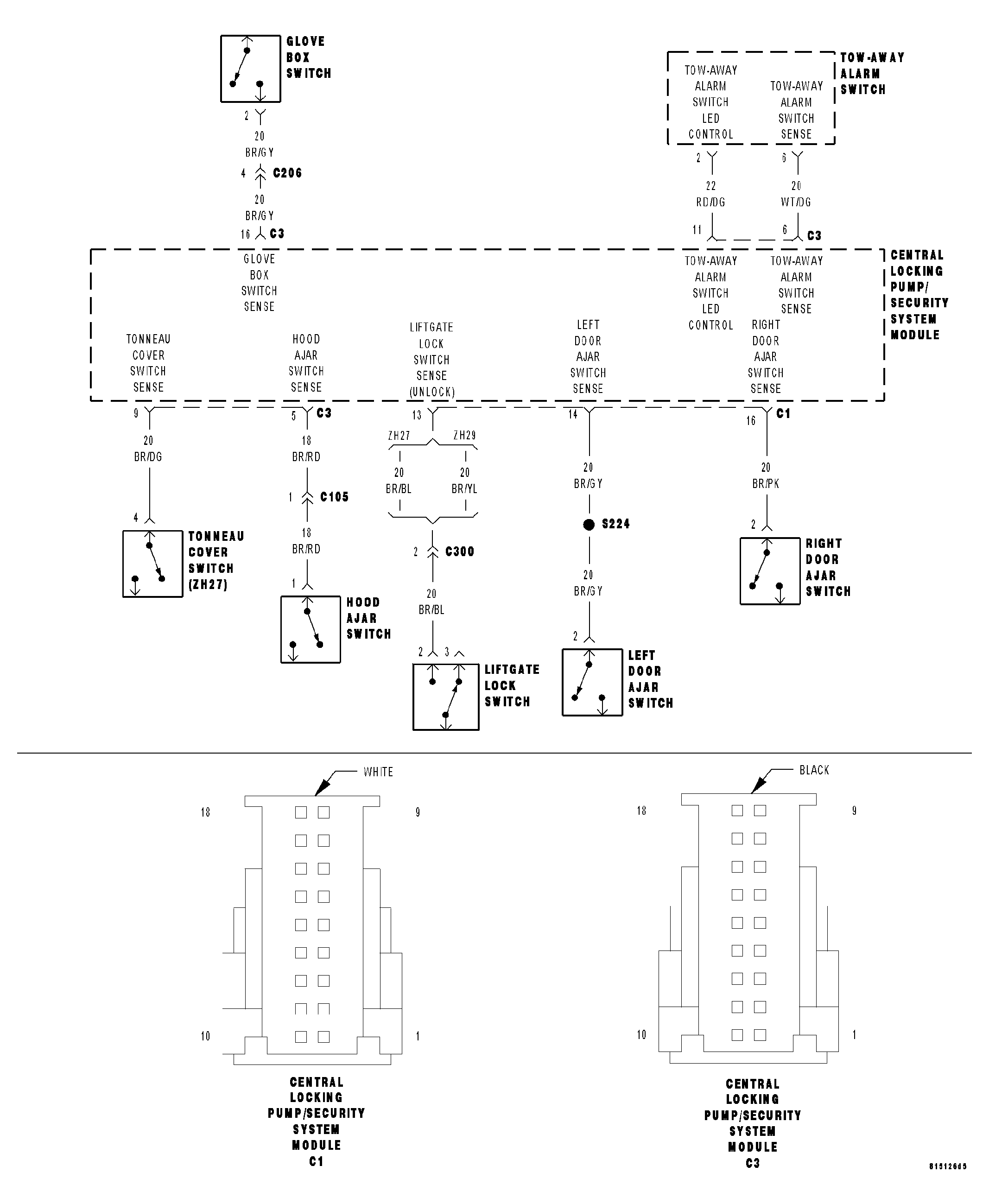

Fig 1: Security System Switches Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored: Continuous with the ignition on.
2. Set Condition: When the Central Locking Pump/Security System Module (CLP/SSM) senses a circuit failure.

For a complete Vehicle Theft Security System Circuit Diagram, see SCHEMATICS AND DIAGRAMS .
