P2009-Short Runner Solenoid Circuit Low: Notes

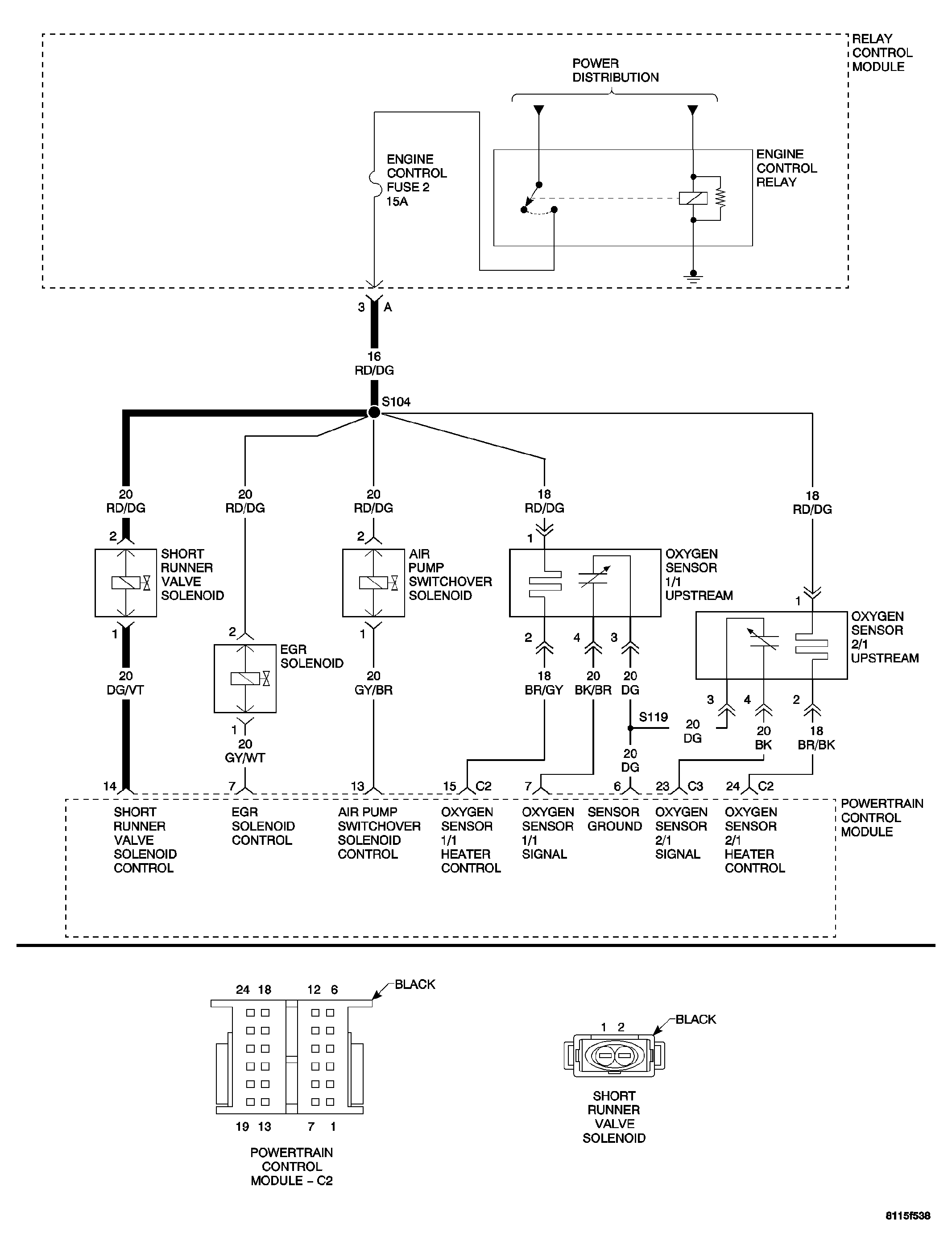

Fig 1: Short Runner Solenoid Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored: Engine running
2. Set Condition: When the PCM is commanding the Short Runner Valve Solenoid on and doesn't detect voltage at the control circuit.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
